Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Model Number: | CS90 | Feed Size: | 41-175 |
|---|---|---|---|
| Production Capacity: | 27-163 | Application Field: | Construction And Metal Ore Crushing, Etc |
| Applicable Materials: | Suitable For Crushing Ore, Etc. | Moving Cone Diameter(mm): | 900 |
| Power (kw): | 75 | Weigh (t): | 15 |
| High Light: | 75kw Jaw Cone Crusher,Aggregate Plant Jaw Cone Crusher,CS75D construction Jaw Cone Crusher |
||
Product description

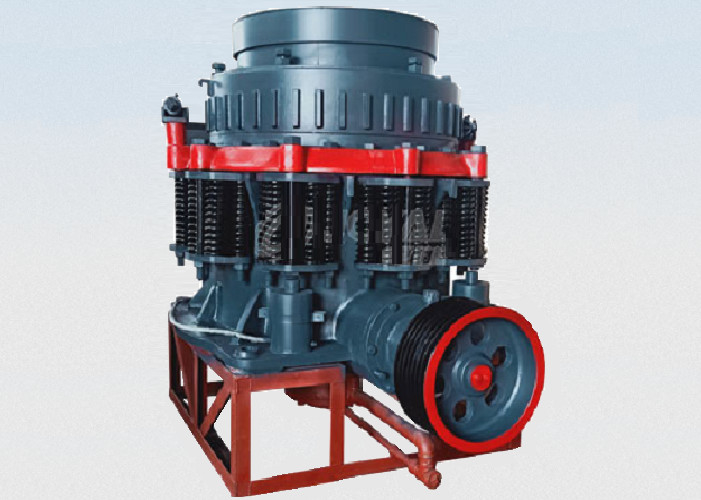

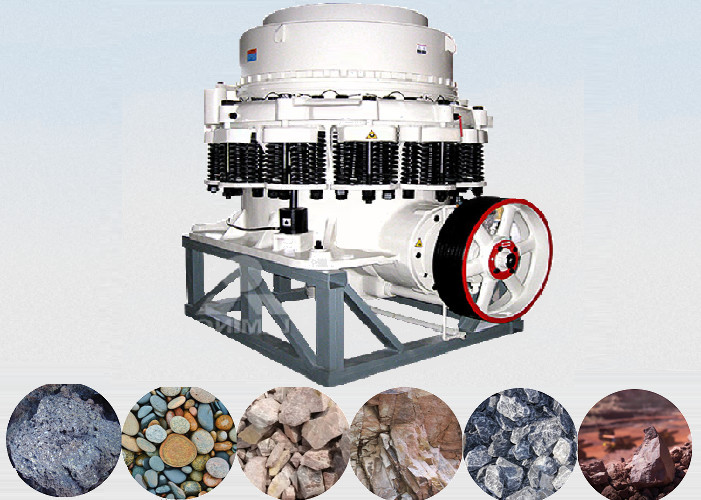

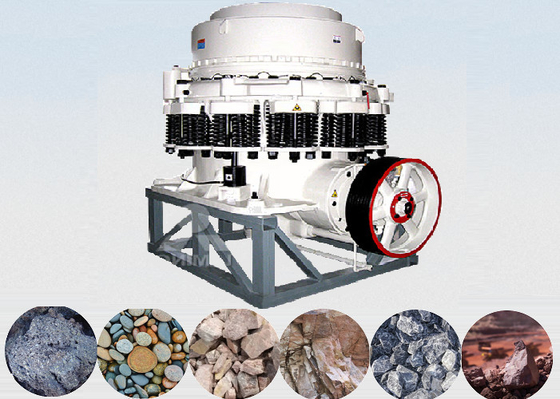

CS90 quarry crusher symon cone crusher stone crusher price aggregate plant
| Model | Diameter of moving cone mm (inch) | Cavity type | Shut up | Opening edge | Adjustable size of discharge port(mm) | Speed of transmission shaft(r/min) | Power (kW) | Output(t/h) | External dimension (mm) |
| Feeder size(mm) | |||||||||
| CS75B | 900 (3′) | Fine type | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 2821×1880 ×2164 |
| Coarse type | 159 | 175 | 13-38 | 59-163 | |||||
| CS75D | 900 (3′) | Fine type | 13 | 41 | 3-13 | 580 | 75 | 27-90 | 2821×1880 ×2410 |
| medium-sized | 33 | 60 | 3-16 | 27-100 | |||||
| Coarse type | 51 | 76 | 6-19 | 65-140 | |||||
| CS160B | 1295 (4 1/4′) | Fine type | 109 | 137 | 13-31 | 485 | 185 | 109-181 | 2800×2342 ×2668 |
| medium-sized | 188 | 210 | 16-31 | 132-253 | |||||
| Coarse type | 216 | 241 | 19-51 | 172-349 | |||||
| CS160D | 1295 (4 1/4′) | Fine type | 29 | 64 | 3-16 | 485 | 160 | 36-163 | 2800×2342 ×2668 |
| medium-sized | 54 | 89 | 6-16 | 82-163 | |||||
| Coarse type | 70 | 105 | 10-25 | 109-227 | |||||
| CS240B | 1650 (5 1/2′) | Fine type | 188 | 209 | 16-38 | 485 | 240 | 181-327 | 3911×2870 ×3771 |
| medium-sized | 213 | 241 | 22-51 | 258-417 | |||||
| Coarse type | 241 | 268 | 25-64 | 299-635 | |||||
| CS240D | 1650 (5 1/2′) | Fine type | 35 | 70 | 5-13 | 485 | 240 | 90-209 | 3917×2870 ×3771 |
| medium-sized | 54 | 89 | 6-19 | 136-281 | |||||
| Coarse type | 98 | 133 | 10-25 | 190-336 | |||||
| CS400B | 2134 (7′) | Fine type | 253 | 278 | 19-38 | 435 | 400 | 381-726 | 5200×4300 ×4700 |
| medium-sized | 303 | 334 | 25-51 | 608-998 | |||||
| Coarse type | 334 | 369 | 31-64 | 870-1400 | |||||
| CS400D | 2134 (7′) | Fine type | 51 | 105 | 5-16 | 435 | 400 | 190-408 | 5200×4300 ×4700 |
| medium-sized | 95 | 133 | 10-19 | 354-508 | |||||
| Coarse type | 127 | 178 | 13-25 | 454-599 | |||||
1. The automatic control system adopts a large-diameter main shaft, a heavy-duty main frame and an independent thin oil lubrication system to ensure the equipment is durable and reliable. The iron passing protection device ensures that after the miscellaneous iron passes through the crushing cavity, it can quickly restore the original discharge port to ensure the discharge size.

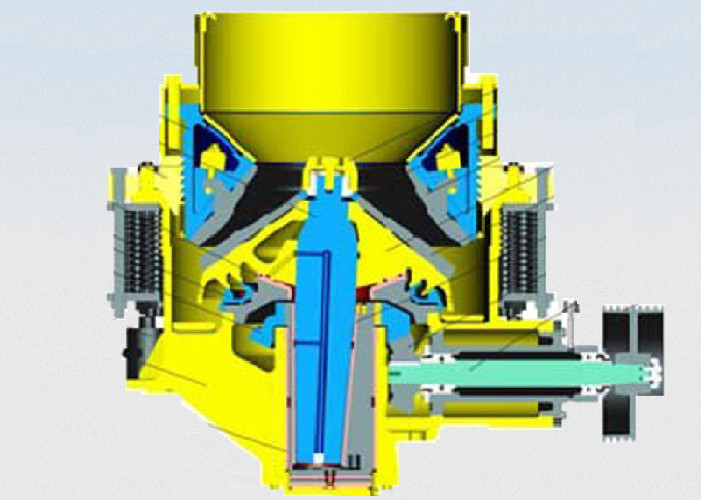

When the CS series high-efficiency cone crusher works, the motor drives the eccentric sleeve to rotate through the V-belt, large pulley, drive shaft, small bevel gear, and large bevel gear. The axis of the crushing cone rotates under the force of the eccentric shaft sleeve., So that the surface of the crushing wall is close to and away from the surface of the rolling mortar wall from time to time, so that the material is continuously impacted, squeezed and bent in the annular crushing cavity composed of the fixed cone and the movable cone. After many times of extrusion, impact and bending, the material is crushed to the required size and discharged through the lower part.
