Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | PE150X250 |
| Minimum Order Quantity: | 1 |
| Price: | USD |
| Packaging Details: | wooden box |
| Delivery Time: | 20-25 workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Model: | PE150X250 | Type: | Stone Crusher |
|---|---|---|---|
| Feed Opening Size (mm): | 150X250 | Max. Feeding Size (mm): | 125 |
| Capacity (t/h): | 1-5 | Weight: | 1000kg |
| Range Of Discharge Opening (mm): | 10-40 | Power (kw): | 5.5 |
| High Light: | PE150X250 Jaw Stone Crusher,Jaw Type Stone Crusher 125mm,Mineral Jaw Cone Crusher |
||
PE150X250 Jaw Crusher Stone Crusher In Mineral Equipment
Jaw crusher is mainly used in the industries of metallurgy, mining chemical,cement,construction,refractory
materials and ceramics,suitable to crush hard and soft ores with compressive strength less than 320MPa.
This machine can break materials into medium size and fine size.
technical parameter
|
Model
|
Feed opening (mm)
|
Maximum feeding size (mm)
|
Range of discharge opening (mm)
|
Capacity (t/h)
|
Power (kw)
|
Overall dimension (mm)
|
|||
|
PE150×250
|
150×250
|
125
|
10-40
|
1-5
|
5.5
|
875×758×850
|
|||
|
PE250×400
|
250×400
|
210
|
20-60
|
5-20
|
15
|
1300×1090×1270
|
|||
|
PE400×600
|
400×600
|
350
|
40-100
|
16-65
|
30/37
|
1730×1730×1630
|
|||
|
PE500×750
|
500×750
|
425
|
50-100
|
45-100
|
55
|
1890×1916×1870
|
|||
|
PE600×900
|
600×900
|
500
|
65-160
|
70-120
|
75
|
2520×1840×2303
|
|||
|
PE750×1060
|
750×1060
|
630
|
80-140
|
130-260
|
110
|
2620×2302×3110
|
|||
|
PE900×1200
|
900×1200
|
750
|
95-165
|
220-380
|
132
|
3789×2826×3025
|
|||
|
PE1000×1200
|
1000×1200
|
850
|
195-265
|
230-380
|
160
|
3889×2826×3025
|
|||
|
PEX250×1000
|
250×1000
|
210
|
25-60
|
16-50
|
30
|
1560×1950×1390
|
|||
|
PEX250×1200
|
250×1200
|
210
|
25-60
|
20-60
|
37
|
2140×1660×1500
|
|||
|
PEX300×1300
|
300×1300
|
250
|
20-90
|
16-105
|
55
|
2720×1950×1600
|
|||

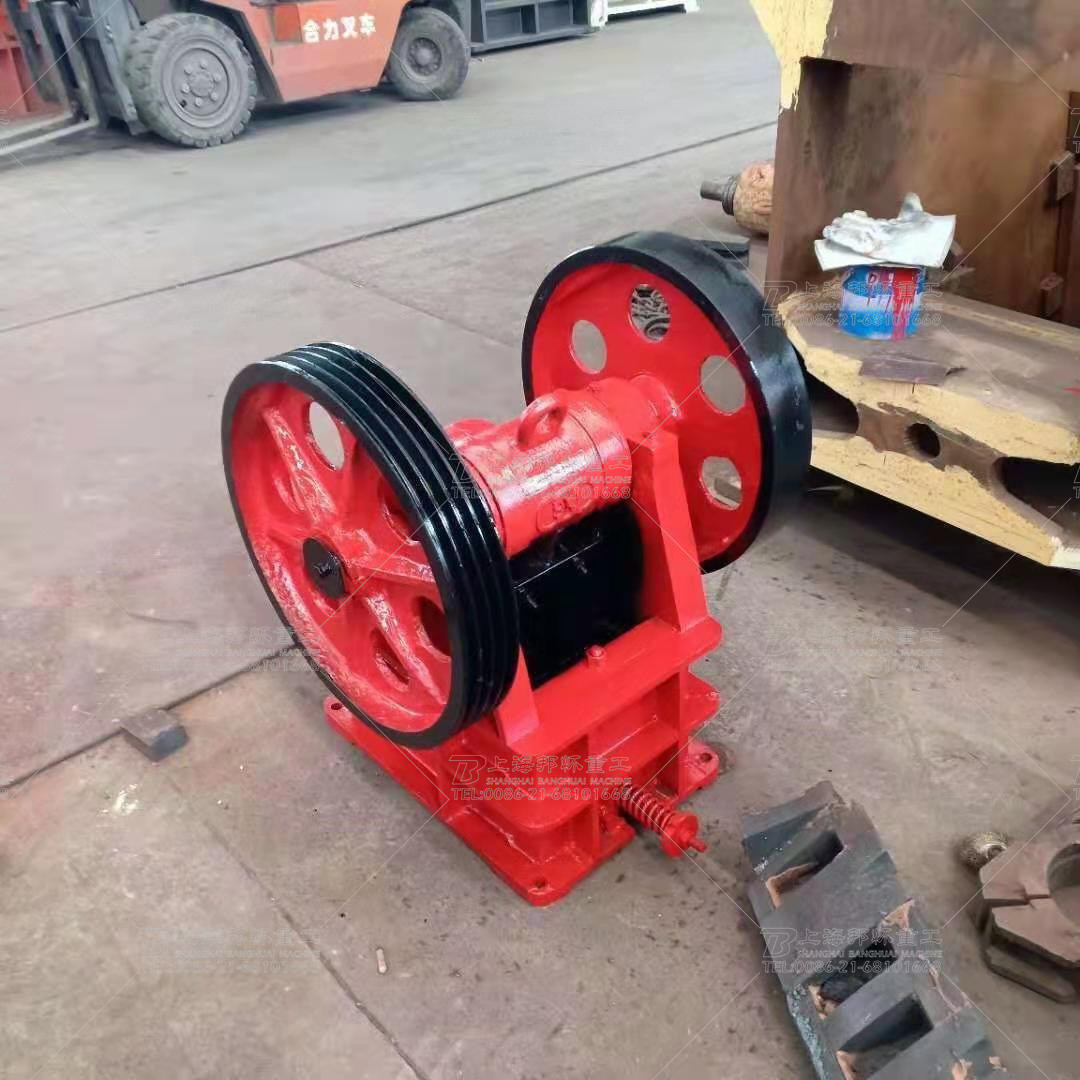

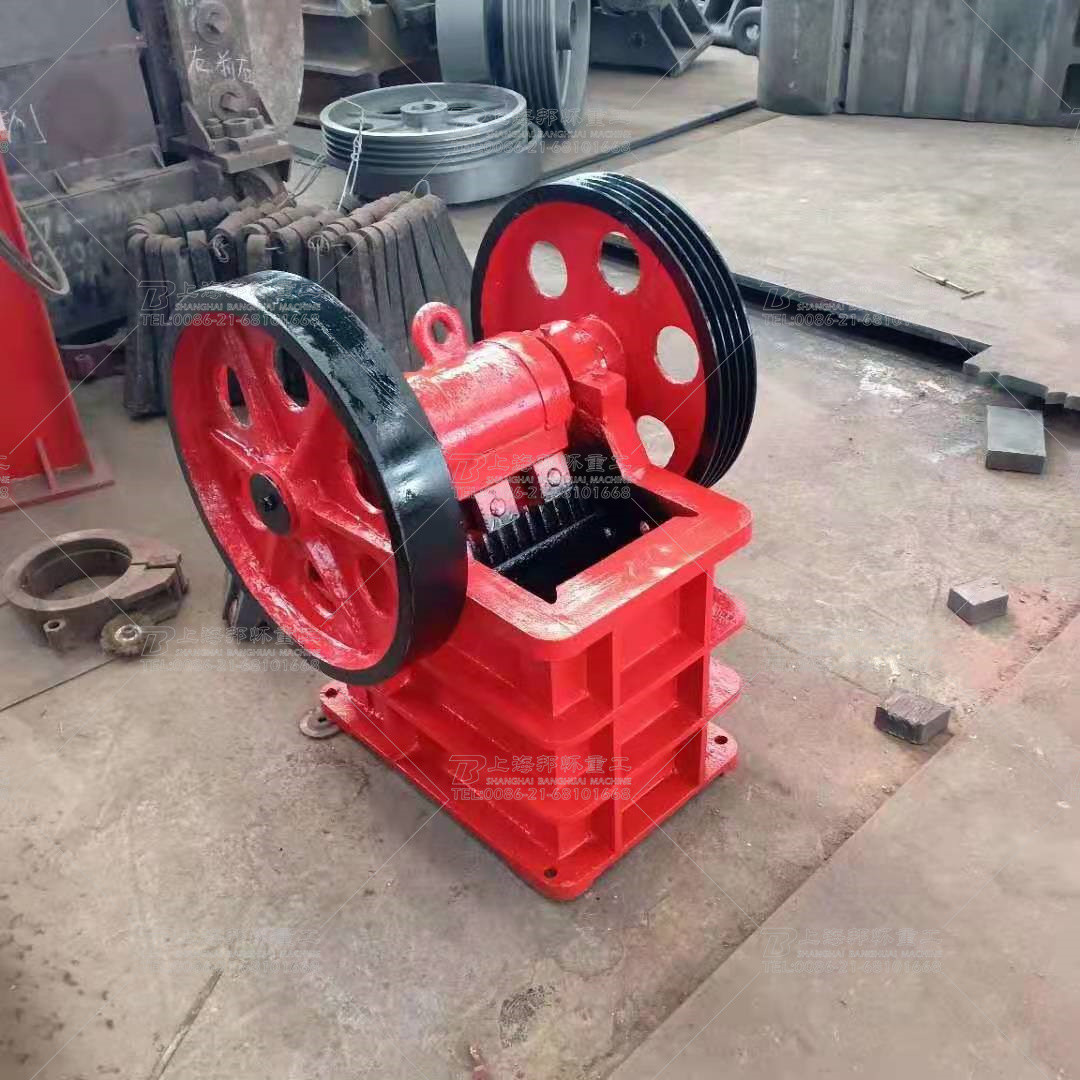

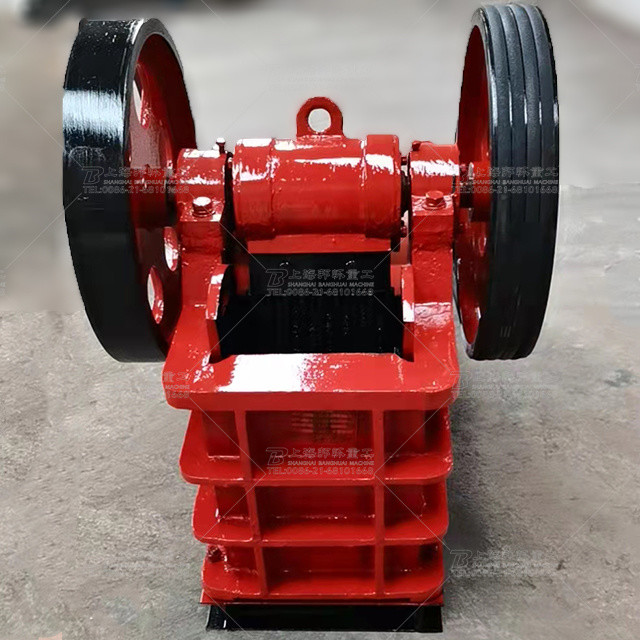

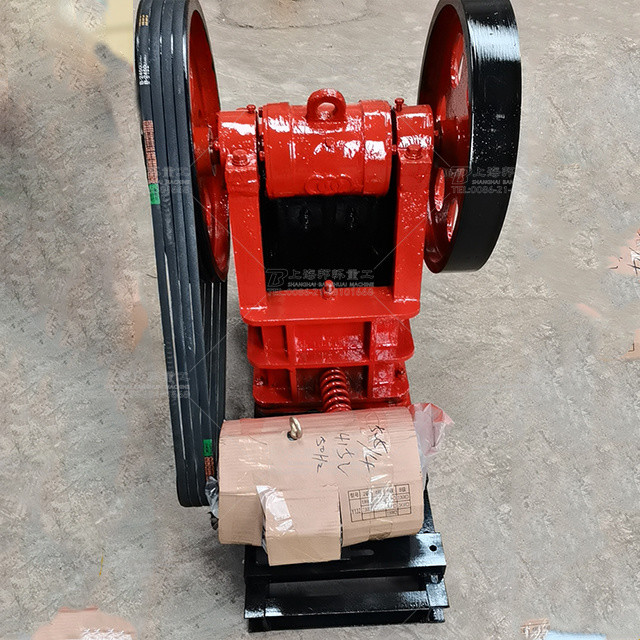

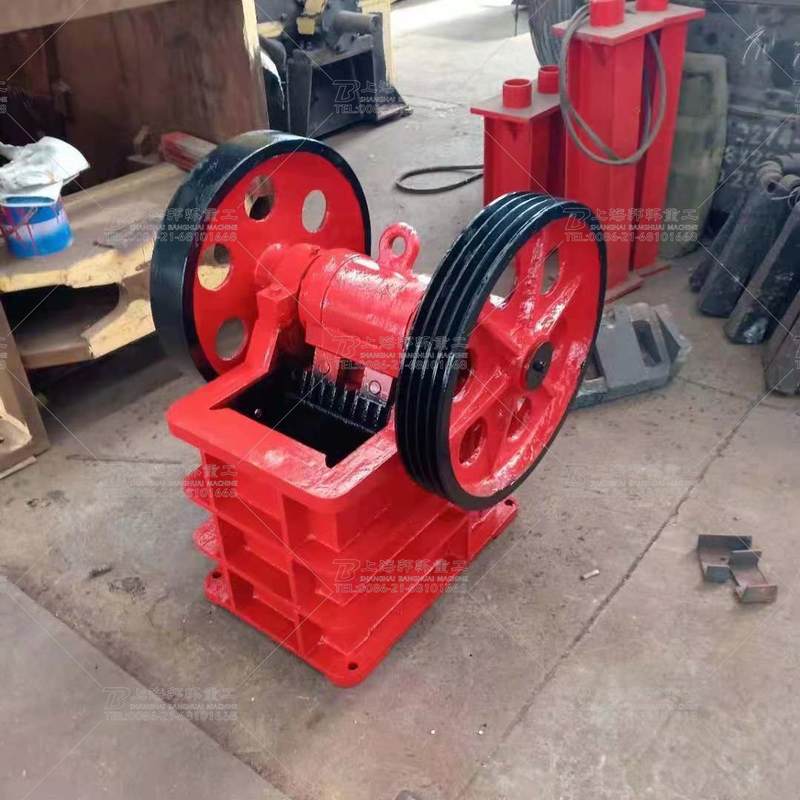

The PE-150×250 jaw crusher is a smaller type of equipment in the jaw crusher series. Its production
capacity is 1-3 cubic meters per hour, which is suitable for the crushing needs of small-scale star-producing
ore in small mines. The size of the inlet port of the material is 150x250 (mm), the maximum allowable feed
size is 125 (mm), and the allowable adjustment range of the discharge port is 10-40 (mm). The motor
power required for the 150x250 jaw crusher is 5.5-7.5KW. On the whole, PE-150x250 jaw crusher is mostly
used for the preliminary crushing of small stones, and the effect is better. The accessories of PE-150×250
jaw crusher mainly refer to vulnerable accessories, such as: side guard plate, side lining plate, fixed tooth
plate, toggle plate, etc. of jaw crusher.
Working principle
Jaw crusher’s working type is of moving and squeezing. The working principle is as follows: jaw crusher
uses motor as its power. Through the motor’s wheels, the eccentric shaft is driven by the tringle belt and
slot wheel to make the movable jaw plate move by a regulated track. Therefore, the material in the
crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be discharged
through the discharging opening.Jaw crusher mainly consists of frame, eccentric shaft, jaw plate,
connecting bar, adjustment part and spring.
