Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | shanghai |
|---|---|
| Brand Name: | Banghuai |
| Certification: | ISO9001 |
| Model Number: | PE250 × 400 |
| Minimum Order Quantity: | 1 |
| Price: | USD |
| Packaging Details: | Container |
| Delivery Time: | 25 workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
| Model: | PE250 × 400 | Feed Opening (mm): | 150×250 |
|---|---|---|---|
| Maximum Feeding Size (mm): | 210 | Range Of Discharge Opening (mm): | 10-40 |
| Capacity (t/h): | 1-5 | Power (kw): | 5.5 |
| Overall Dimension (mm): | 875×758×850 | Weight(kg): | 4425 |
| High Light: | Dolomite Limestone Rock Jaw Crusher,Rock Jaw Crusher PE250x400,5t/H Jaw Cone Crusher |
||

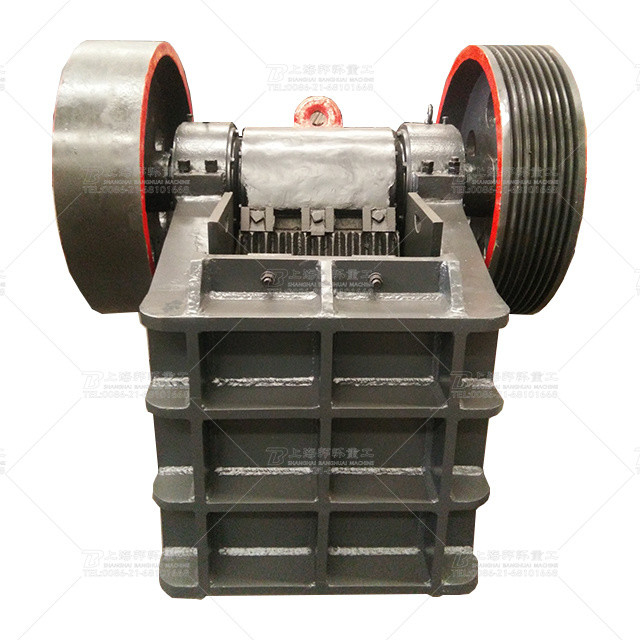

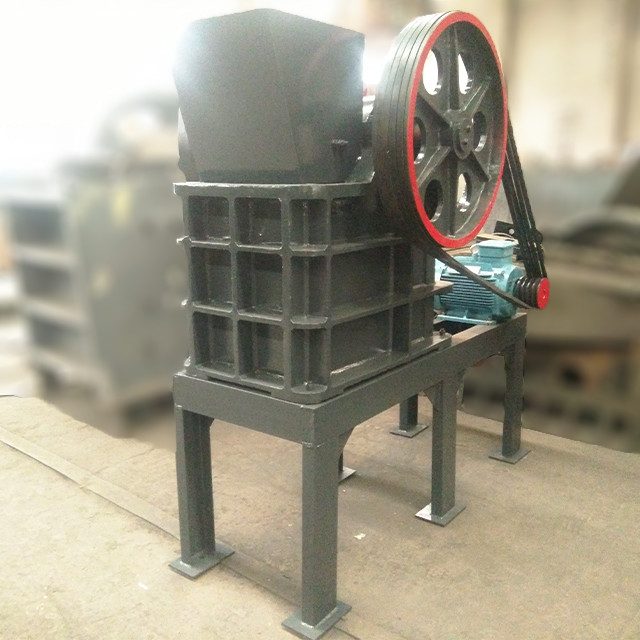

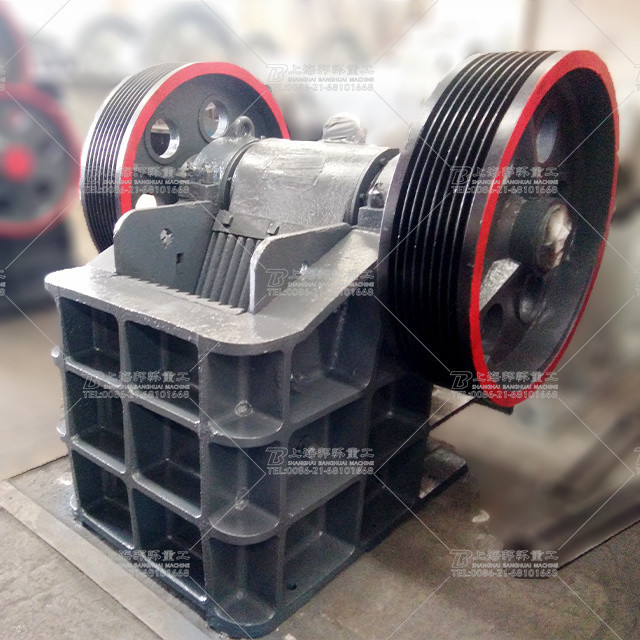

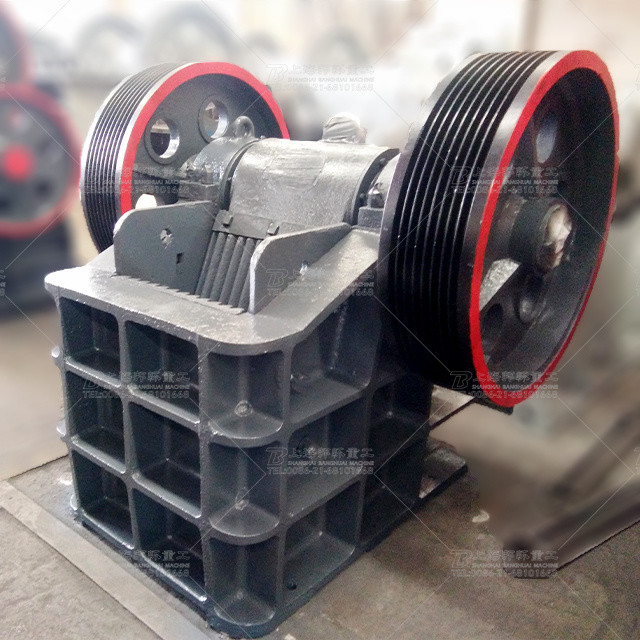

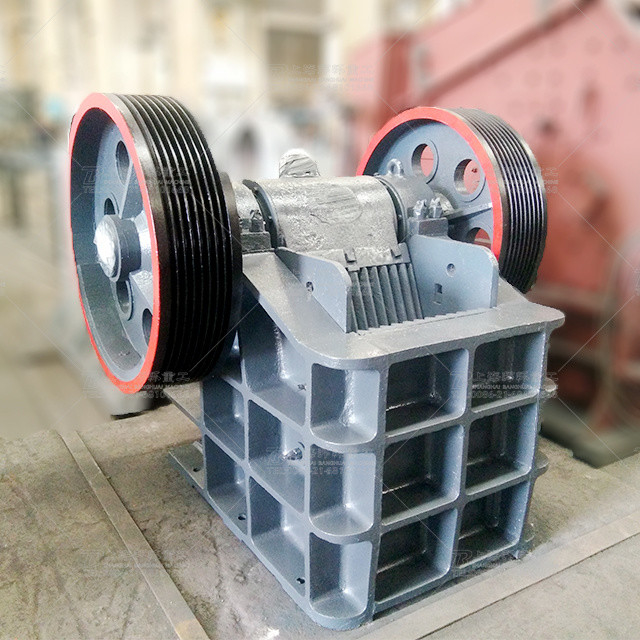

PE250×400Jaw Crusher Stone Crusher In Mineral Equipment
PE250×400 Jaw crusher is mainly used in the industries of metallurgy, mining chemical,cement,construction,refractory
materials and ceramics,suitable to crush hard and soft ores with compressive strength less than 320MPa.
This machine can break materials into medium size and fine size.
technical parameter
| Model | Feed opening (mm) | Maximum feeding size (mm) | Range of discharge opening (mm) | Capacity (t/h) | Power (kw) | Overall dimension (mm) |
| PE60×100 | 60×100 | 50 | ‘’6-15 | 0.04-0.5 | 1.5 | 712×350×460 |
| PE150×250 | 150×250 | 125 | ‘’10-40 | 1-5 | 5.5 | 875×758×850 |
| PE250×400 | 250×400 | 210 | 20-60 | ‘’5-20 | 15 | 1300×1090×1270 |
| PE400×600 | 400×600 | 350 | 40-100 | 16-65 | 30/37 | 1730×1730×1630 |
| PE500×750 | 500×750 | 425 | 50-100 | 45-100 | 55 | 1890×1916×1870 |
| PE600×900 | 600×900 | 500 | 65-160 | 70-120 | 75 | 2520×1840×2303 |
| PE750×1060 | 750×1060 | 630 | 80-140 | 130-260 | 110 | 2620×2302×3110 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 220-380 | 132 | 3789×2826×3025 |
| PE1000×1200 | 1000×1200 | 850 | 195-265 | 230-380 | 160 | 3889×2826×3025 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 250 | 4930×3150×3700 |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 16-50 | 30 | 1560×1950×1390 |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37 | 2140×1660×1500 |
| PEX300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 55 | 2720×1950×1600 |
Working principle
Jaw crusher’s working type is of moving and squeezing. The working principle is as follows: jaw crusher
uses motor as its power. Through the motor’s wheels, the eccentric shaft is driven by the tringle belt and
slot wheel to make the movable jaw plate move by a regulated track. Therefore, the material in the
crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be discharged
through the discharging opening.Jaw crusher mainly consists of frame, eccentric shaft, jaw plate,
connecting bar, adjustment part and spring.
