Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | CS400B/D series high efficiency cone crusher |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Feed Size: | 364 | Production Capacity: | 381-1400 |
|---|---|---|---|
| Application Fields: | Construction And Metal Ore Crushing, Etc | Model Number: | CS400B/D |
| Speed Of Transmission Shaft(r/min): | 580 | Power (kw): | 400 |
| Cone Series: | Spring Cone | Applicable Materials: | Suitable For Various Ore, Etc. |
| High Light: | 400kw Jaw Cone Crusher,580r min Jaw Cone Crusher,400kw symons cone crusher |
||
Product description

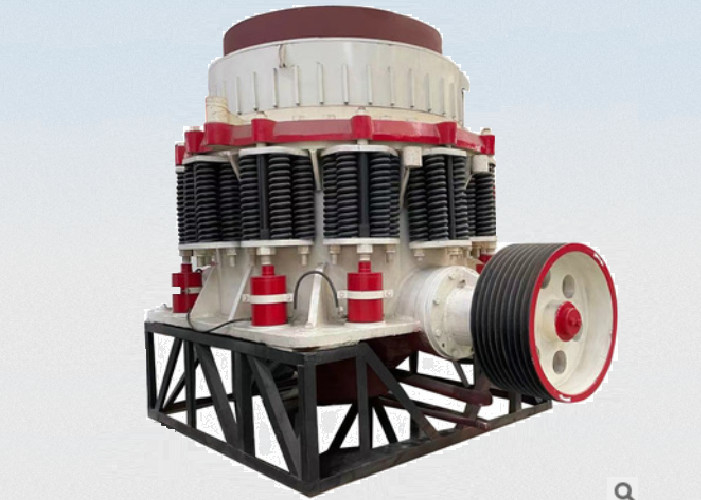

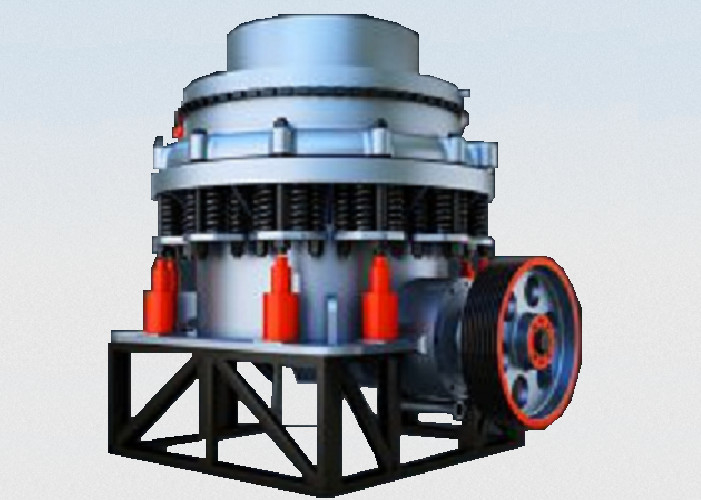

CS400B/D Jaw Cone Crusher Stone crusher stone crushing machine stone cone crusher rock crusher machine
The CS series high-efficiency cone crusher is designed and developed by our company on the basis of introducing and absorbing foreign technology, according to customer needs, based on the principle of laminated crushing and the concept of more breaking and less grinding, which integrates high swing frequency, optimized cavity shape and reasonable stroke. All-in-one modern high-performance crusher.
Application field:construction stone crushing and metal ore crushing, etc
Applicable materials:Suitable for crushing granite, marble, basalt, limestone, quartz stone, river pebble, iron ore, copper ore, etc.
| Model | Diameter of moving cone mm (inch) | Cavity type | Shut up | Opening edge | Adjustable size of discharge port(mm) | Speed of transmission shaft(r/min) | Power (kW) | Output(t/h) | External dimension (mm) |
| Feeder size(mm) | |||||||||
| CS75B | 900 (3′) | Fine type | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 2821×1880 ×2164 |
| Coarse type | 159 | 175 | 13-38 | 59-163 | |||||
| CS75D | 900 (3′) | Fine type | 13 | 41 | 3-13 | 580 | 75 | 27-90 | 2821×1880 ×2410 |
| medium-sized | 33 | 60 | 3-16 | 27-100 | |||||
| Coarse type | 51 | 76 | 6-19 | 65-140 | |||||
| CS160B | 1295 (4 1/4′) | Fine type | 109 | 137 | 13-31 | 485 | 185 | 109-181 | 2800×2342 ×2668 |
| medium-sized | 188 | 210 | 16-31 | 132-253 | |||||
| Coarse type | 216 | 241 | 19-51 | 172-349 | |||||
| CS160D | 1295 (4 1/4′) | Fine type | 29 | 64 | 3-16 | 485 | 160 | 36-163 | 2800×2342 ×2668 |
| medium-sized | 54 | 89 | 6-16 | 82-163 | |||||
| Coarse type | 70 | 105 | 10-25 | 109-227 | |||||
| CS240B | 1650 (5 1/2′) | Fine type | 188 | 209 | 16-38 | 485 | 240 | 181-327 | 3911×2870 ×3771 |
| medium-sized | 213 | 241 | 22-51 | 258-417 | |||||
| Coarse type | 241 | 268 | 25-64 | 299-635 | |||||
| CS240D | 1650 (5 1/2′) | Fine type | 35 | 70 | 5-13 | 485 | 240 | 90-209 | 3917×2870 ×3771 |
| medium-sized | 54 | 89 | 6-19 | 136-281 | |||||
| Coarse type | 98 | 133 | 10-25 | 190-336 | |||||
| CS400B | 2134 (7′) | Fine type | 253 | 278 | 19-38 | 435 | 400 | 381-726 | 5200×4300 ×4700 |
| medium-sized | 303 | 334 | 25-51 | 608-998 | |||||
| Coarse type | 334 | 369 | 31-64 | 870-1400 | |||||
| CS400D | 2134 (7′) | Fine type | 51 | 105 | 5-16 | 435 | 400 | 190-408 | 5200×4300 ×4700 |
| medium-sized | 95 | 133 | 10-19 | 354-508 | |||||
| Coarse type | 127 | 178 | 13-25 | 454-599 | |||||

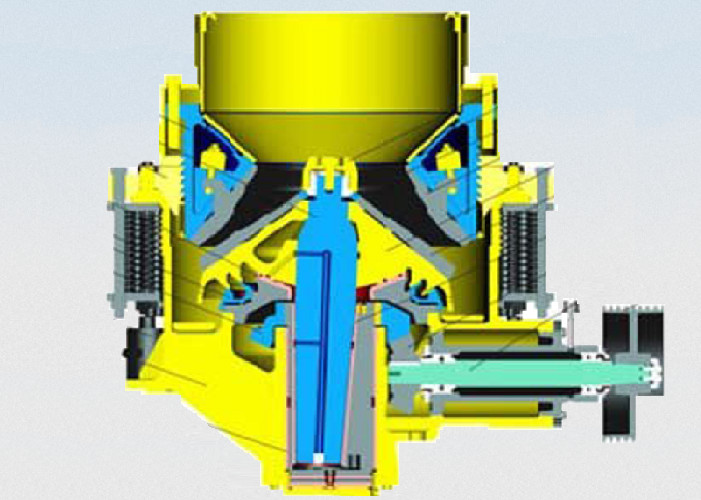

When the CS series high-efficiency cone crusher works, the motor drives the eccentric sleeve to rotate through the V-belt, large pulley, drive shaft, small bevel gear, and large bevel gear. The axis of the crushing cone rotates under the force of the eccentric shaft sleeve. So that the surface of the crushing wall is close to and away from the surface of the rolling mortar wall from time to time, so that the material is continuously impacted, squeezed and bent in the annular crushing cavity composed of the fixed cone and the movable cone. After many times of extrusion, impact and bending, the material is crushed to the required size and discharged through the lower part.
