Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | φ2400x4500 Ball mill series |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Max Inlet Size(mm): | ≤25 | Finished Size(MM): | 0.074-0.4 |
|---|---|---|---|
| Applicable Materials: | Cement, Silicate Products, New Building Materials. | Application Fields: | Metal Ore Dressing, Glass Ceramics Etc. Production Dry Grinding |
| Weight(t): | 69 | Motor Power (KW): | 320 |
| Capacity(t): | 30 | Model Number: | φ2400x4500 |
| High Light: | 2400x4500 ore ball mill,30t ore ball mill,30t dry grinding mill |
||
Product description
φ2400*4500 Model Ball mill series limestone mill, marble mill, ore crusher, pulverizer, crusher, dry and wet ball mill
The high efficiency and energy-saving ball mills all use rolling bearing support instead of sliding bearing support. Compared with sliding bearing support, it can save energy by 10-20%. Under the same power condition, the production capacity can be increased by 10-20%.
Chemical Fertilizer, Black And Non-ferrous Metal Beneficiation, Glass Ceramics And Other Production Industries, Dry Grinding.
| model | Max inlet size(mm) | Finished size(MM) | The yield(t) | Weight(t) | Loading capacity(t) | Motor Power (KW) | Rotation(r/min) |
| φ900x1800 | ≤25 | 0.075-0.89 | 0.65-2.1 | 5.5 | 1.5 | 18.5 | 38 |
| φ900x2100 | ≤25 | 0.075-0.4 | 0.65-2.5 | 6.2 | 1.8 | 22 | 38 |
| φ900x3000 | ≤25 | 0.075-0.4 | 1.1-3.5 | 6.7 | 2.7 | 22 | 38 |
| φ900x2400 | ≤25 | 0.075-0.4 | 0.65-3 | 6.2 | 3.8 | 45 | 32 |
| φ1200x3000 | ≤25 | 0.075-0.4 | 1.6-5 | 12.8 | 5 | 45 | 32 |
| φ1200x4500 | ≤25 | 0.075-0.4 | 1.7-7.5 | 13.8 | 7 | 55 | 32 |
| φ1500x3000 | ≤25 | 0.075-0.4 | 2-6 | 17 | 8 | 90 | 27 |
| φ1500x4500 | ≤25 | 0.047-0.4 | 5-7 | 21 | 14 | 110 | 27 |
| φ1500x5700 | ≤25 | 0.047-0.4 | 4-8 | 24.7 | 15 | 132 | 27 |
| φ1830x3000 | ≤25 | 0.047-0.4 | 4-10 | 28 | 11 | 180 | 24 |
| φ1830x3600 | ≤25 | 0.074-0.4 | 4.5-12 | 35.5 | 15 | 155 | 25.4 |
| φ1830x6400 | ≦25 | 0.047-0.4 | 6.5-15 | 34 | 23 | 210 | 24 |
| φ1830x7000 | ≤25 | 0.047-0.4 | 7.5-17 | 36 | 25 | 245 | 24 |
| φ2100x4500 | ≤25 | 0.047-0.4 | 8-26 | 42 | 24 | 245 | 23.7 |
| φ2100*7000 | ≤25 | 0.047-0.4 | 10-22 | 58.5 | 30 | 370 | 21 |
| φ2200x6500 | ≤25 | 0.047-0.4 | 14-26 | 52.8 | 30 | 380 | 21 |
| φ2200x7500 | ≤25 | 0.047-0.4 | 8-29 | 56 | 33 | 380 | 21 |
| φ2200x9500 | ≤25 | 0.047-0.4 | 8-29 | 62 | 38 | 475 | 21 |
| Ф2400×4500 | ≤25 | 0.074-0.4 | 8.5-60 | 69 | 30 | 320 | 21 |
| φ2400x7000 | ≤25 | 0.047-0.4 | 68 | 39.5 | 475 | 20 | |
| φ2700x3600 | ≤25 | 0.047-0.4 | 12-80 | 77 | 39 | 400 | 21 |
| φ3200x4500 | ≤25 | 0.047-0.4 | 25-65 | 126 | 65 | 800 | 19 |
| φ3600x6000 | ≤25 | 0.047-0.4 | 190 | 117 | 1600 | 18 |
1. Features of high efficiency and energy saving ball mill.
2. Dry ball mill technology can not only dry production, but also wet production, but also grinding and drying at the same time.
3. Zero pollution, low noise.
4. Adjustable granularity, low failure rate, good operation.
5. Strong versatility.
6. Structural advantages.

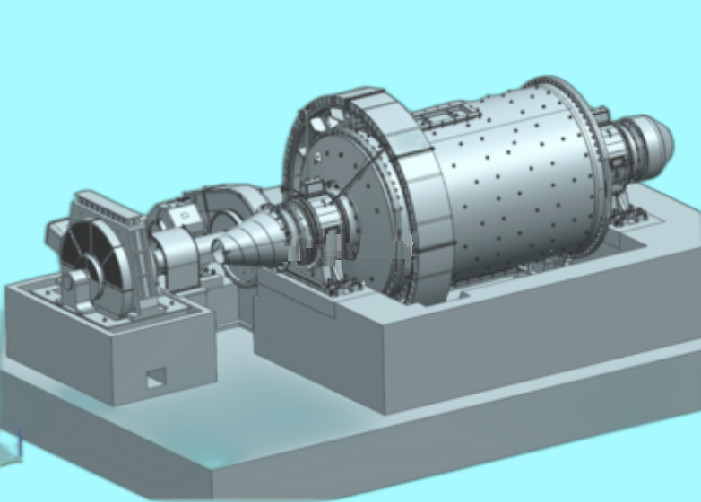

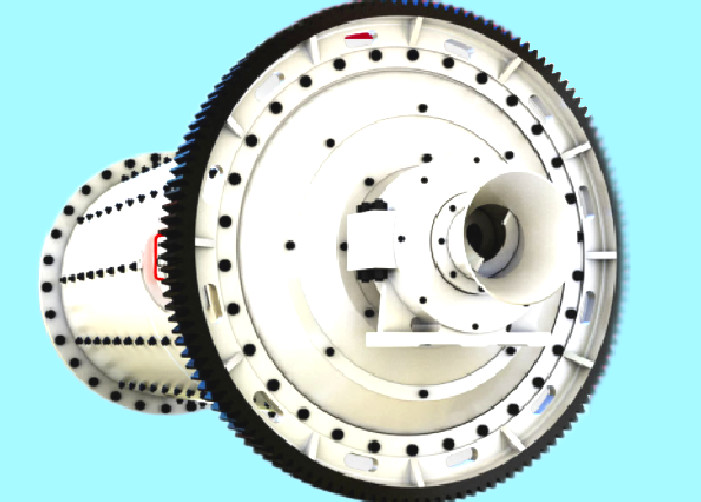

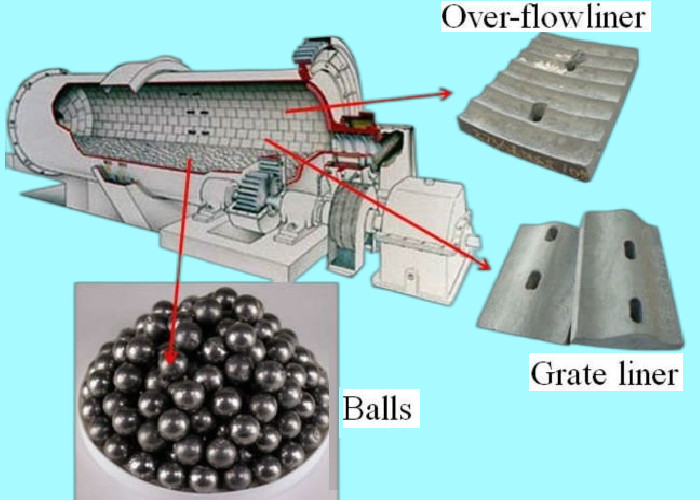

This machine is a horizontal cylindrical rotating device, which is driven by outer gear. The material enters the mill evenly through the feeding device through the feeding hollow shaft screw. There are corrugated liners in the bin, which are filled with steel balls of different specifications.
