Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | Rotary Dryer Three cylinder dryer |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Output: | 1.9-76.0t/h | Feed Size: | 8mm |
|---|---|---|---|
| Applicable Materials: | Powder, Block And Granular Materials | Application Fields: | Dry Materials With A Certain Humidity Or Particle Size |
| Cylinder Length （m）: | 15-25 | Cylinder Volume（m³）: | 20.27-69.15 |
| Type Of Lifting Plate（℃）: | 850 | Inner Diameter Of Outer Cylinder（mm）: | 1500-2000 |
| High Light: | Rotary Drying Centrifugal Gold Concentrator,25m Cylinder Centrifugal Gold Concentrator,Mineral Processing Centrifugal Gold Concentrator |
||
Product description

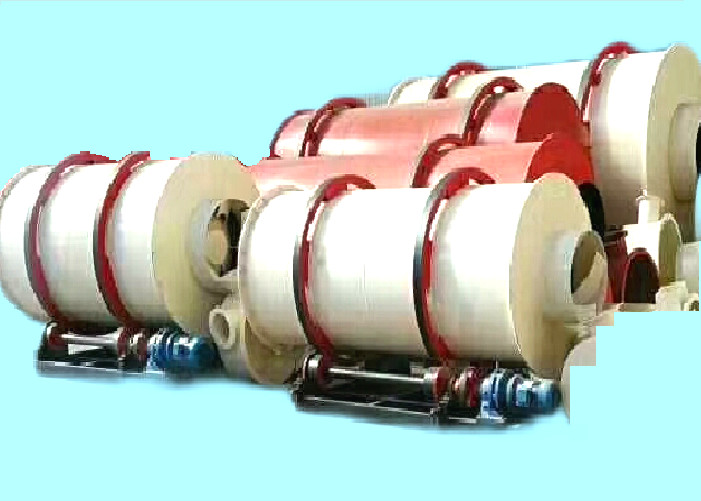

Dryer /Rotary Dryer series Sand and gravel mine drying machine-made sand plant jaw stone crusher
The dryer is mainly used for drying materials with certain humidity or particle size in mineral processing, building materials, metallurgy, chemical industry and other departments. Rotary dryer has strong adaptability to materials, can dry all kinds of materials, and the equipment operation is simple and reliable, so it is widely used.
The dryer is mainly used for drying materials with certain humidity or particle size in mineral processing, building materials, metallurgy, chemical industry and other departments. Rotary dryer has strong adaptability to materials, can dry all kinds of materials, and the equipment operation is simple and reliable, so it is widely used.
| Specifications Diameter of cylinder × Tube length |
Inner diameter of outer cylinder(mm) |
Inner diameter ofinnercylinder |
Cylinder length (m) |
Cylinder volume(m³) |
Cylinder slope |
Type of lifting plate |
Type of lifting plate(℃) | Dimensions(m) |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting type | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting type | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.1 | 3-5% | Lifting type | 850 | ——— |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
1. The lifting plate device is adopted, which has many functions such as guiding, current sharing and lifting;
2. The material can be evenly distributed in the radial section of the dryer, the material curtain can be thin, uniform and complete, and can completely contact with the hot air flow, so as to make full use of the heat energy;
3. It has been widely used in cement and mineral processing enterprises;
4. With reasonable operation parameters, the coal consumption and power consumption are lower than those of ordinary dryers.
