Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | 1510Milling machine |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Finished Product Particle Size: | 0.613-0.033mm | Throughput: | 0.8-2t/h |
|---|---|---|---|
| Application Area: | Processing And Milling Of More Than 1,000 Raw Materials In The Industry. | Applicable Materials: | Various Processed Non-flammable And Explosive Mineral Pads, Etc. |
| MaxFeedsize(MM): | 15-20 | Electricpower(KW): | 18.5 |
| Electricpower(KW)fan: | 15 | WhenTheyield(T): | 0.8-2 |
| High Light: | Limestone Dolomite Coarse Powder Mill,20mm Feed Coarse Powder Mill,18.5kw Coarse Powder Mill |
||
Product description

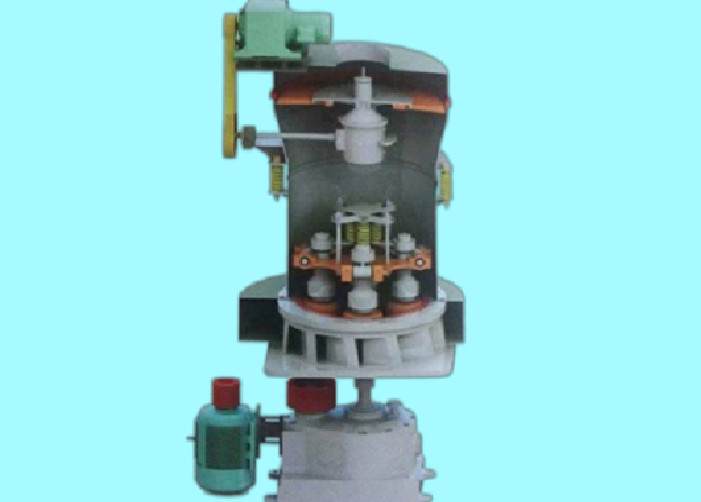

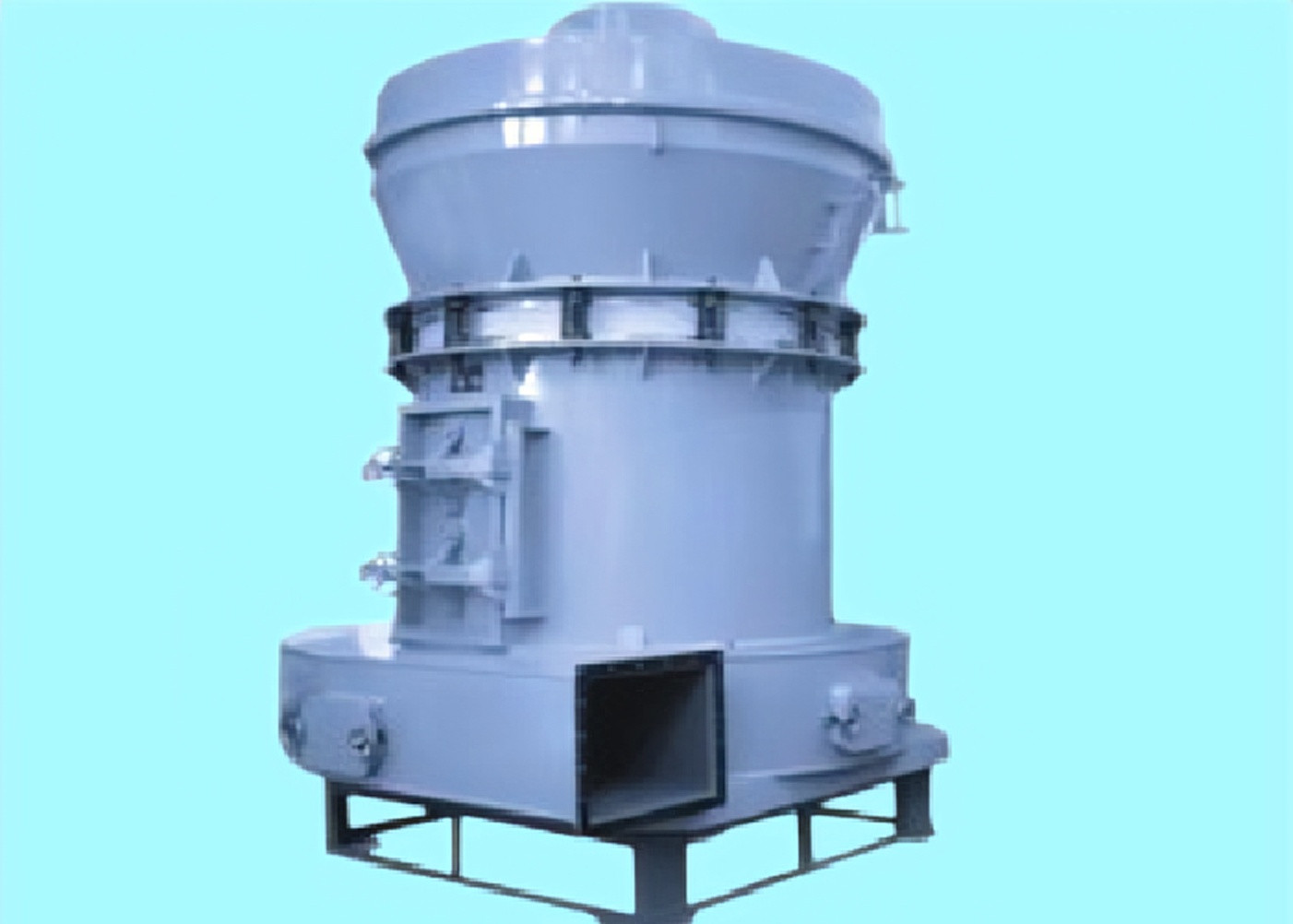

YGM7815 high pressure pulverizer limestone calcite Vertical Pulverizer ore pulverizer equipment
MTM Medium-speed grinding mill is a world leading tool for powder grinding. it absorbs world first-class industrial powder milling technology and organizes the technical experts and related engineers for elaborate design, test and improvement
| Spec. |
Roller number |
Roller Size(mm) |
MaxFeed size(mm) |
Finished size(mm) |
Overall size LxWxH(mm) |
Electric power(kw) |
Electric power(kw) |
When The yield(T) |
| YGM7815 | 3 | 260*150 | 15-20 | 0.613-0.033 | 4300*3500*5100 | 18.5 | 15 | 0.8-2 |
| YGMM8314 | 3 | 270*140 | 15-20 | 0.613-0.033 | 5300*4100*5200 | 22 | 22 | 1-3 |
| YGMM9517 | 4 | 310*170 | 15-25 | 0.613-0.033 | 7100*5900*7900 | 37 | 37 | 2.1-5.6 |
| YGM4121 | 5 | 410*210 | 15-25 | 0.613-0.033 | 7850*8000*9700 | 75 | 75 | 2.8-10.5 |
| MTM160 | 6 | 440*270 | 20-35 | 0.613-0.033 | 12550*5700*8350 | 132 | 132 | 5-20 |
| MTM175 | 5 | 520*280 | 25-40 | 0.6-0.045 | 12575*9555*9916 | 160 | 200 | 13-25 |
1. Interitance of Classical Design, Innovation of Science & Technology
2. Lower Electricity Consumption, Higher Economic Profits
3. Impeller-type Energy-saving Fan Having Higher Efficiency
4. Lower Energy Consumption - Cambered Air Duct
5. Digitalized Processing, Higher Precision
After jaw crushers break large bulky materials to smaller ones, elevators work to send materials to the hopper. Then, by electromagnetic vibrating feeders, broken materials are evenly and quantitatively sent to the grinding chamber of MTM Medium-speed Grinding Mill. After grinding, materials are blown away by airflow to the powder concentrator for classifying.
Under the action of the impeller of powder selector, materials which fail to meet fineness would be sent back to grinding chamber to get another grinding while qualified powders would be collected by cyclone powder collector and discharged from the bottom as finished products. And, after that, the airflow would go into the fan along with the air return duct at the top of cyclone power collector.
This system adopts a closed circuit and runs under positive and negative pressure. Because materials have a certain content of moisture, heat generated during grinding may lead air evaporation or swell in the grinding chamber so that the amount of airflow increases sharply. Besides, if the feed port and joints of pipelines are not sealed well, external air may intrude the grinding mill and lead imbalance of airflow.
