Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Model Number: | GP200S4 | Feed Size: | 0-42mm |
|---|---|---|---|
| Production Capacity: | 45-142t / H | Application Field: | Construction Metal Ore Crushing, Etc |
| Applicable Materials: | Ore Of Various Hardness | Cavity Type: | S4 |
| Adjustment Range Of Discharge Port(mm): | 6-22 | Power(kw): | 110-160 |
| High Light: | limestone GP Cone Crusher,Granite GP Cone Crusher,MS660 artificial sand making machine |
||
Product description
MS660 Granite crusher limestone crusher chinese stone crusher iron crusher mobile stone crusher

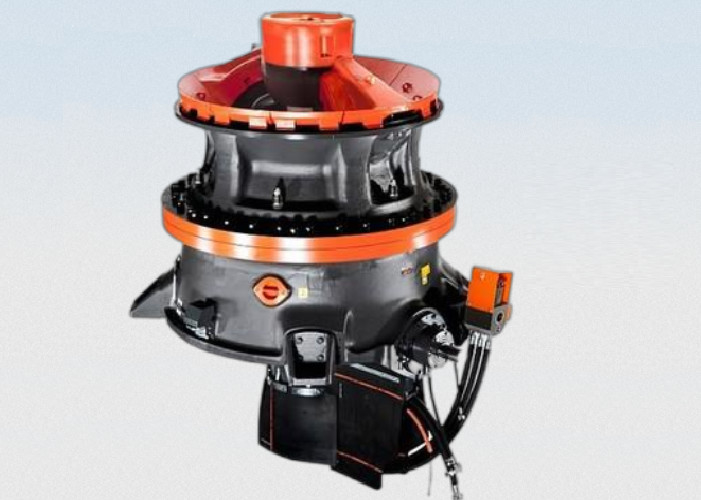

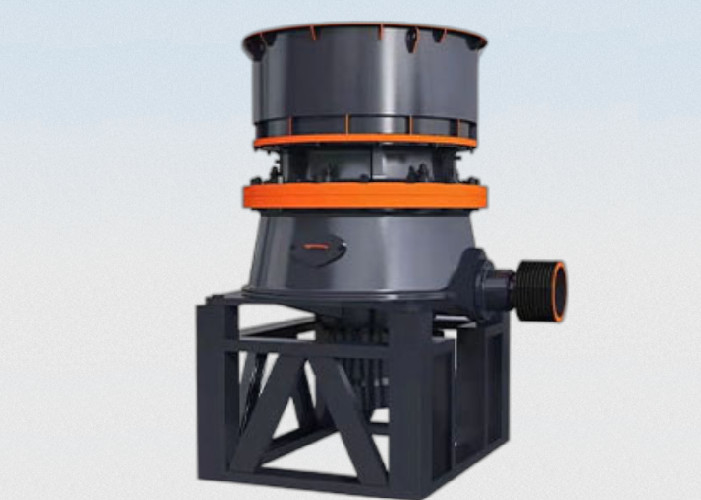

The single cylinder hydraulic cone crusher is widely used in metal and non-metal mines, building materials, transportation, metallurgy, water conservancy and other industries, and it is suitable for medium and fine crushing of various ores, such as iron ore, non-ferrous metal ore, granite, limestone, quartzite, sandstone, river pebble, etc.
| Spec.ification |
Cavity Size (Coarse/Fine) |
DischargingOpening Size(mm) |
MaxFeeding Size(mm) |
Capacity(t/h) | Power(kw) |
MovingCone Diameter(mm) |
Weigh(t) |
| GP100S | S1 | 20～45 | 130 | 80～190 | 75～90 | 1550*1575*1965 | 7.35 |
| S2 | 16～30 | 90 | 60～125 | ||||
| S3 | 10～25 | 50 | 40～100 | ||||
| S4 | 4～16 | 38 | 25～55 | ||||
| GP200S | S1 | 20～60 | 180 | 130～280 | 110～160 | 2100*1800*3000 | 10.9 |
| S2 | 16～45 | 130 | 100～230 | ||||
| S3 | 10～30 | 70 | 90～210 | ||||
| S4 | 6～22 | 42 | 45～142 | ||||
| GP300S | S1 | 30～60 | 260 | 150～400 | 160～250 | 2380*2735*3265 | 16.2 |
| S2 | 20～40 | 180 | 110～355 | ||||
| S3 | 16～30 | 130 | 100～260 | ||||
| S4 | 8～25 | 70 | 72～252 | ||||
| GP500S | S1 | 40～70 | 300 | 210～700 | 250～315 | 3780*2341*4531 | 33.3 |
| S2 | 30～60 | 210 | 160～580 | ||||
| S3 | 20～50 | 160 | 140～510 | ||||
| S4 | 13～38 | 85 | 124～423 |
1. Simple structure, easy to use and maintain;
2. Large crushing ratio and uniform product size;
3. Stable performance and low cost of use;
4. Low noise and less dust.
The single cylinder hydraulic cone crusher is mainly composed of upper frame, middle frame, lower frame, moving cone, eccentric sleeve, transmission and hydraulic cylinder. The motor drives the horizontal axis to rotate, the horizontal axis drives the eccentric sleeve to rotate through the engagement of spiral bevel gear, and then the eccentric sleeve drives the moving cone to rotate and swing, so as to realize continuous extrusion and crushing.
