Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | GP100S3 Single Cylinder Hydraulic Cone Crusher |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Feed Size: | 0-50mm | Production Capacity: | 40-100t / H |
|---|---|---|---|
| Application Field: | Ore Of Various Hardness | Applicable Materials: | Metallurgy Construction Chemical Phosphate Etc |
| Power (kw): | 75-90 | Model Number: | GP100S3 |
| Machine Series: | Single Cylinder Cone | Cavity Type: | Coarse Type /medium-sized /Fine Type |
| High Light: | 190t h GP Cone Crusher,90kw GP Cone Crusher,90kw fine cone crusher |
||
Product description
GP100 Granite crusher limestone crusher chinese stone crusher iron crusher mobile stone crusher

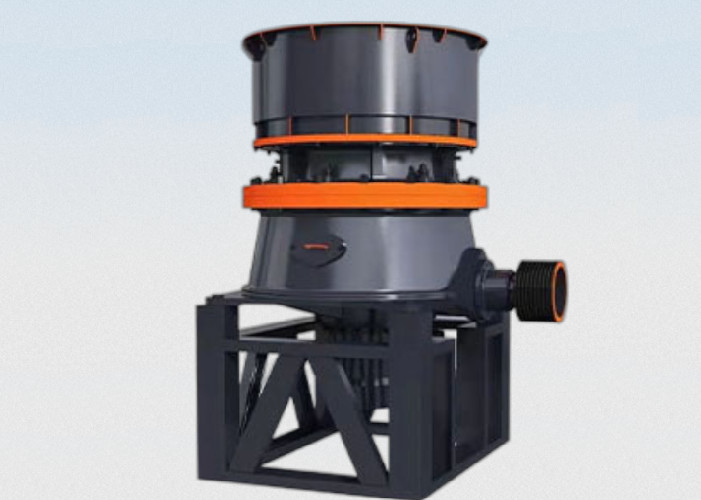

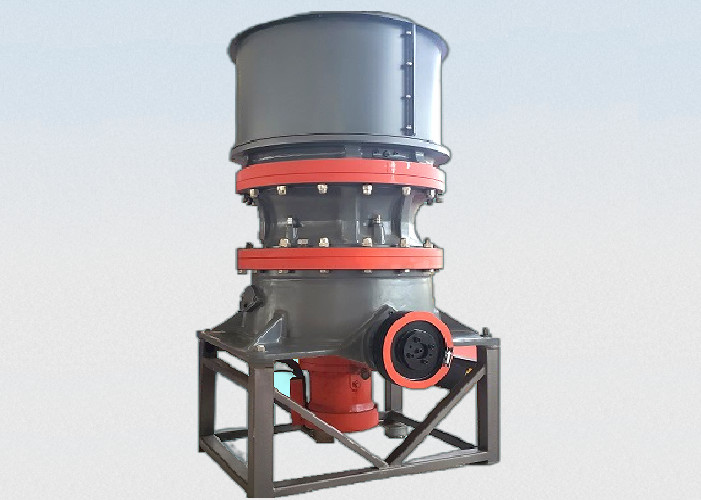

The single cylinder hydraulic cone crusher is widely used in metal and non-metal mines, building materials, transportation, metallurgy, water conservancy and other industries, and it is suitable for medium and fine crushing of various ores, such as iron ore, non-ferrous metal ore, granite, limestone, quartzite, sandstone, river pebble, etc.
| Spec.ification |
Cavity Size (Coarse/Fine) |
Discharging OpeningSize(mm) |
MaxFeeding Size(mm) |
Capacity(t/h) | Power(kw) |
MovingCone Diameter(mm) |
Weigh(t) |
| GP100S | S1 | 20～45 | 130 | 80～190 | 75～90 | 1550*1575*1965 | 7.35 |
| S2 | 16～30 | 90 | 60～125 | ||||
| S3 | 10～25 | 50 | 40～100 | ||||
| S4 | 4～16 | 38 | 25～55 | ||||
| GP200S | S1 | 20～60 | 180 | 130～280 | 110～160 | 2100*1800*3000 | 10.9 |
| S2 | 16～45 | 130 | 100～230 | ||||
| S3 | 10～30 | 70 | 90～210 | ||||
| S4 | 6～22 | 42 | 45～142 | ||||
| GP300S | S1 | 30～60 | 260 | 150～400 | 160～250 | 2380*2735*3265 | 16.2 |
| S2 | 20～40 | 180 | 110～355 | ||||
| S3 | 16～30 | 130 | 100～260 | ||||
| S4 | 8～25 | 70 | 72～252 | ||||
| GP500S | S1 | 40～70 | 300 | 210～700 | 250～315 | 3780*2341*4531 | 33.3 |
| S2 | 30～60 | 210 | 160～580 | ||||
| S3 | 20～50 | 160 | 140～510 | ||||
| S4 | 13～38 | 85 | 124～423 |
1. The grain type is regular and the yield is high.
2. Strong crushing capacity.
3. Continuous and stable operation, and can prevent iron from mixing into the automatic overload protection.
4. High efficiency rotary feeding device makes liner wear evenly.
5. Automatic overload protection against iron mixing.
The single cylinder hydraulic cone crusher is mainly composed of upper frame, middle frame, lower frame, moving cone, eccentric sleeve, transmission and hydraulic cylinder. The motor drives the horizontal axis to rotate, the horizontal axis drives the eccentric sleeve to rotate through the engagement of spiral bevel gear, and then the eccentric sleeve drives the moving cone to rotate and swing, so as to realize continuous extrusion and crushing.
