Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | PYD600 Series Spring Cone Crusher |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Cone Diameter (mm): | 600 | Production Capacity(t/h): | 5-23 |
|---|---|---|---|
| Applicable Materials: | Metallurgy, Construction, Road Construction, Chemical Industry, Etc | Applications Fields: | Ore, Etc |
| Adjusting Range (mm): | 3-13 | Power (kw): | 30 |
| Overall Dimension (mm): | 2692×1640×2350 | Model Number: | PYD600 |
| High Light: | Spring PY Cone Crusher,stone PY Cone Crusher,PYD600 mine cone crusher |
||
Product description

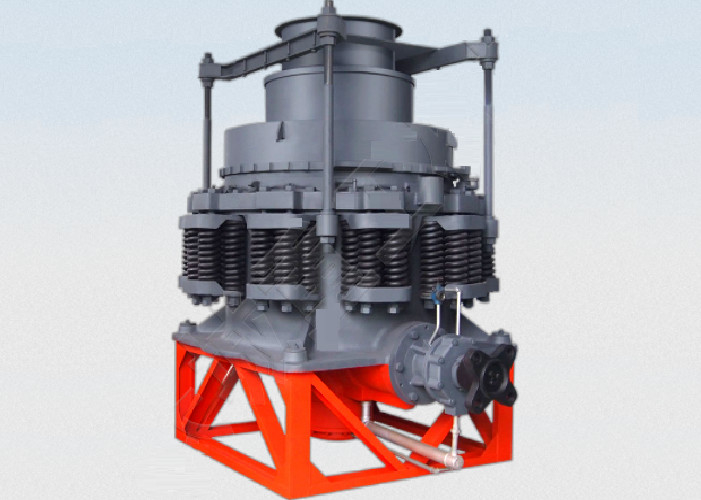

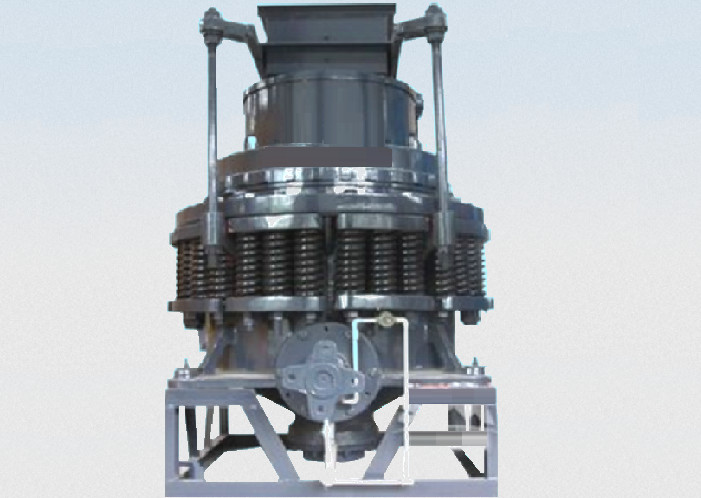

PYD900 Model Series Spring Cone Crusher Mine Crusher
PY Spring Cone Crusher is widely used in crushing iron ore, copper ore, cobble, river pebble, quartz, granite, basalt, diabase, etc; In metallurgy, construction, road construction and many other industries have a wide range of applications.
| Model | Cavity type |
Feedingopening Size(mm) |
DischargingOpening Size(mm) |
MaxFeeding Size(mm) |
Capacity (t/h) |
Power (kw) |
Equipment weight(t) | Overall dimension(mm) |
| PY600 | B | 75 | 12-25 | 65 | 12-25 | 30 | 5 | 2234x1370x1675 |
| D | 40 | 2-13 | 35 | 5-23 | 5.1 | 2234x1370x1675 | ||
| PY900 | B | 135 | 15-50 | 115 | 50-90 | 55 | 11.2 | 2692x1640x2350 |
| Z | 70 | 5-20 | 60 | 20-65 | 11.2 | 2692x1640x2350 | ||
| D | 50 | 3-13 | 50 | 15-50 | 11.3 | 2692x1640x2350 | ||
| PY1200 | B | 170 | 20-50 | 145 | 110-168 | 110 | 24.7 | 2790x1878x2844 |
| Z | 115 | 8-25 | 100 | 42-135 | 25 | 2790x1878x2844 | ||
| D | 60 | 3-13 | 50 | 18-105 | 25.6 | 2790x1878x2844 | ||
| PY1750 | B | 250 | 25-50 | 215 | 280-480 | 160 | 50.3 | 3910x2894x3809 |
| Z | 215 | 10-30 | 185 | 115-320 | 50.3 | 3910x2894x3809 | ||
| D | 100 | 5-15 | 85 | 75-230 | 50.2 | 3910x2894x3809 | ||
| PY2200 | B | 350 | 30-60 | 300 | 590-1000 | 260 | 80 | 4622x3302x4470 |
| Z | 275 | 10-30 | 230 | 200-580 | 80 | 4622x3302x4470 | ||
| D | 130 | 5-15 | 100 | 120-370 | 81.4 | 4622x3302x4470 |
Crushing range:
various ores and rocks with medium hardness and above;
Structure:
reliable, high production efficiency, convenient adjustment and economical use;
Overload protection:
Spring safety system can make foreign iron block pass through the crushing chamber without hurting the crusher;
Operation:
Adopt glycerin seal to isolate dust and lubricating oil to ensure reliability;
Customization:
According to customer requirements, standard, medium and short head types can be selected for coarse crushing, medium crushing, and fine crushing.

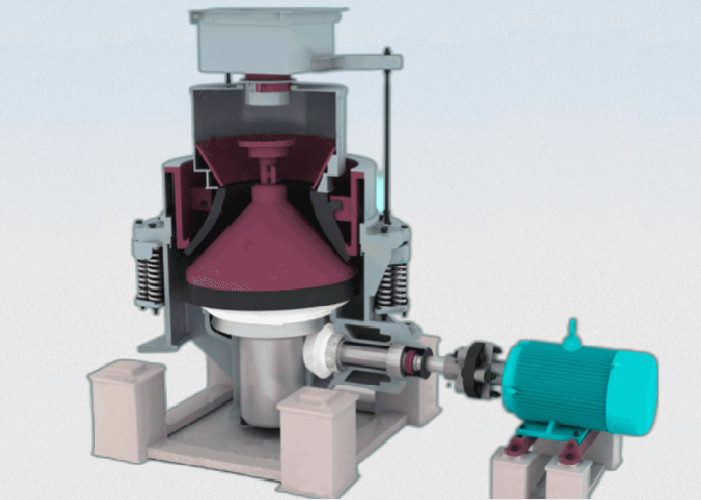

The spring cone crusher is driven by the motor through the triangle belt, big pulley, small bevel gear and big bevel gear of the transmission shaft to rotate the eccentric sleeve. The main shaft rotates and swings under the force of the eccentric sleeve. The crushing wall sometimes approaches and sometimes stays away from the mortar wall.
The materials are constantly impacted, squeezed and bent in the annular crushing cavity composed of the fixed cone and the moving cone to crush. After many times of extrusion, impact and bending, the material is broken and discharged through the lower part.
