Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | PXJ1616 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Feed Size: | 0-190mm | Production Capacity: | 170-250t/h |
|---|---|---|---|
| Scope Of Work: | Suitable For Sand, Gravel, Machine-made Sand Processing And Other Fields | Main Purpose: | Suitable For Medium And Fine Crushing Of Various Soft And Medium Ores |
| Power/Kw: | 250 | Rotor Spec /mm: | 1600x1600 |
| Adjusting Range(mm): | 5-20 | Model Number: | PXJ1600x1600 |
| High Light: | 1600x1600 hammer stone crusher,20mm hammer stone crusher,1600x1600 hammer rock crusher |
||
Product description
PXJ1600x1600 Model mine crusher fine crusher Stone crusher Stone hammer mill impact crusher
European coarse grinding, also known as European coarse grinding and coarse grinding, is a grinding equipment specially designed for medium crushing, fine crushing and coarse powder processing of stone materials. It is mainly suitable for crushing various soft and hard ores with compressive strength not higher than 320MPa (MPA). It is used in industrial and mining enterprises such as metallurgy, mining, chemical industry, cement, coal gangue, construction, sand making, refractory materials and ceramics.
Crushing Various Brittle Materials, Such As Coal, Coal Gangue, Coke, Slag, Fine Sandstone, Shale, Loose Limestone, Etc.
Fine Crushing Of Granite, Basalt, Limestone, River Pebble, Cement Clinker, Quartz, Iron Ore, Bauxite And Other Minerals.
|
Model |
Rotor spec /mm | Feed opening/mm | Max Feeding Size/mm | Finished particle size/mm | Adjusting range(mm) | Capacity (t/h) | Power/Kw |
| PXJ800x400 | 800x400 | 400x185 | ≤120 | ＜5 | 5-20 | 20-45 | 37 |
| PXJ800x600 | 800x600 | 500x250 | ≤180 | ＜5 | 5-20 | 30-55 | 45 |
| PXJ800x800 | 800x800 | 550x330 | ≤180 | ＜5 | 5-20 | 35-65 | 55 |
| PXJ1000x1000 | 1000x1000 | 1000x350 | ≤180 | ＜5 | 5-20 | 45-75 | 75 |
| PXJ1200x1200 | 1200x1200 | 1200x450 | ≤180 | ＜5 | 5-20 | 90-110 | 110 |
| PXJ1400x1400 | 1400x1400 | 1400x500 | ≤180 | ＜5 | 5-20 | 100-150 | 160 |
| PXJ1600x1600 | 1600x1600 | 1600x550 | ≤190 | ＜5 | 5-20 | 170-250 | 250 |
| PXJ1800x1800 | 1800x1800 | 1800x800 | ≤190 | ＜5 | 5-20 | 250-310 | 315 |
1. High production capacity and large crushing ratio.
2. Low power consumption and uniform product particle size.
3. The mechanical structure is simple, compact and light.
4. It has the advantages of low investment cost and convenient management.

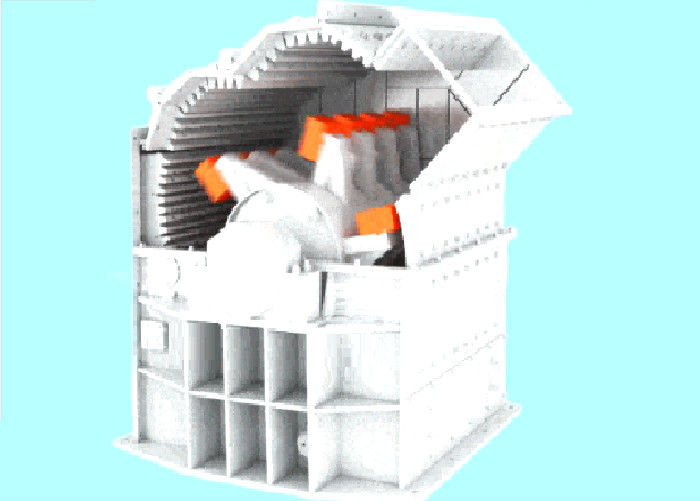

European plate coarse grinding is mainly composed of casing, rotor, grate and other components. The casing is divided into upper and lower parts, which are welded after cutting by steel plate, and the other parts are connected into one by bolts. The casing is inlaid with high manganese steel lining plate, which is easy to replace after wear; An array of hammers with regular distribution are installed on the main shaft to form a rotor with the rotary table and the hammer threading shaft.
