Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | PXJ1010 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Feed Size: | 0-180mm | Production Capacity: | 45-75t/h |
|---|---|---|---|
| Scope Of Work: | Fine Crushing Of Granite, Basalt, Limestone, River Pebble, Cement Clinker, Quartz, Iron Ore, Bauxite And Other Minerals. | Main Purpose: | Fine Crushing Of Various Hardness Minerals |
| Rotor Spec /mm: | 1000x1000 | Adjusting Range(mm): | 5-20 |
| Power（kw）: | 75 | Model Number: | PXJ1000x1000 |
| High Light: | PXJ Coarse Powder Mill,1000x1000 Coarse Powder Mill,1000x1000 limestone crushing equipment |
||
Product description

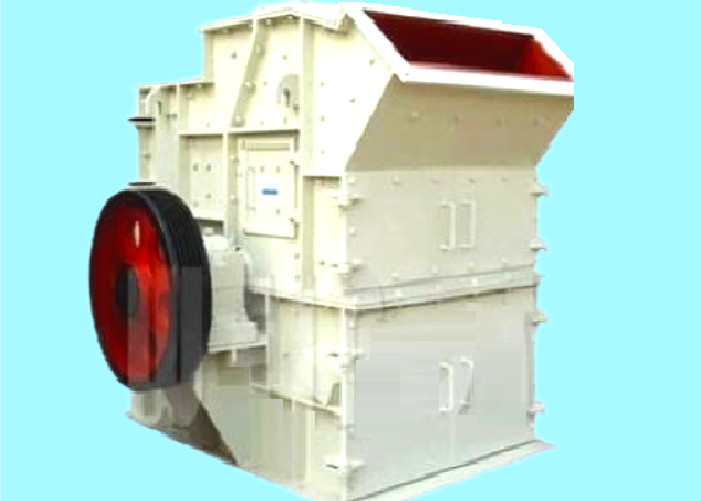

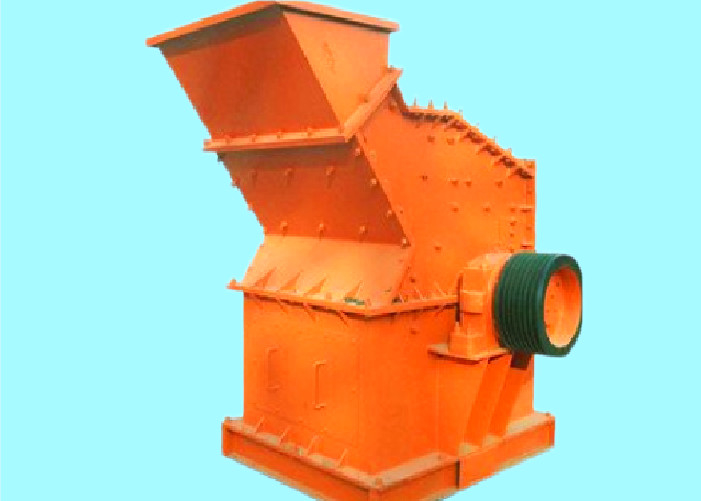

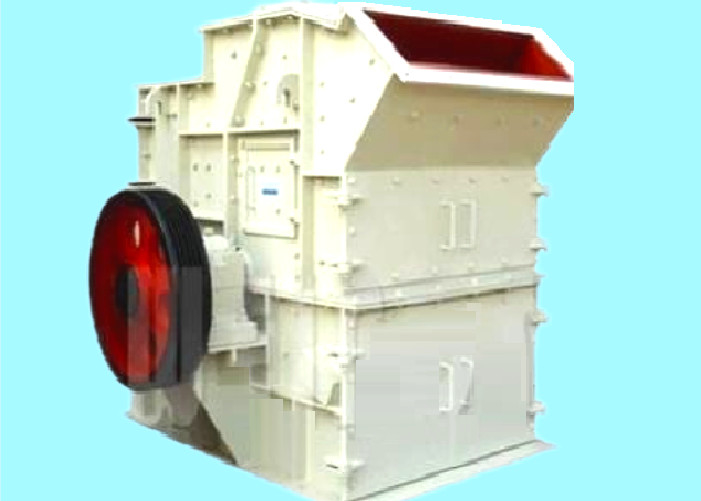

PXJ1000x1000 Model mine crusher fine crusher Stone crusher Stone hammer mill impact crusher
European coarse grinding, also known as European coarse grinding and coarse grinding, is a grinding equipment specially designed for medium crushing, fine crushing and coarse powder processing of stone materials. It is mainly suitable for crushing various soft and hard ores with compressive strength not higher than 320MPa (MPA). It is used in industrial and mining enterprises such as metallurgy, mining, chemical industry, cement, coal gangue, construction, sand making, refractory materials and ceramics.
Crushing Various Brittle Materials, Such As Coal, Coal Gangue, Coke, Slag, Fine Sandstone, Shale, Loose Limestone, Etc.
Fine Crushing Of Granite, Basalt, Limestone, River Pebble, Cement Clinker, Quartz, Iron Ore, Bauxite And Other Minerals.
| Model | Rotor spec /mm | Feed opening/mm | Max Feeding Size/mm | Finished particle size/mm | Adjusting range(mm) | Capacity (t/h) | Power/Kw |
| PXJ800x400 | 800x400 | 400x185 | ≤120 | ＜5 | 5-20 | 20-45 | 37 |
| PXJ800x600 | 800x600 | 500x250 | ≤180 | ＜5 | 5-20 | 30-55 | 45 |
| PXJ800x800 | 800x800 | 550x330 | ≤180 | ＜5 | 5-20 | 35-65 | 55 |
| PXJ1000x1000 | 1000x1000 | 1000x350 | ≤180 | ＜5 | 5-20 | 45-75 | 75 |
| PXJ1200x1200 | 1200x1200 | 1200x450 | ≤180 | ＜5 | 5-20 | 90-110 | 110 |
| PXJ1400x1400 | 1400x1400 | 1400x500 | ≤180 | ＜5 | 5-20 | 100-150 | 160 |
| PXJ1600x1600 | 1600x1600 | 1600x550 | ≤190 | ＜5 | 5-20 | 170-250 | 250 |
| PXJ1800x1800 | 1800x1800 | 1800x800 | ≤190 | ＜5 | 5-20 | 250-310 | 315 |
1. High grinding efficiency and low operation cost.
2. Low construction and investment costs.
3. The equipment is environmentally friendly, with low noise, less dust and clean operating environment.
4. The equipment has large drying capacity and a wide range of grinding materials.
5. Easy and reliable operation, simple operation and maintenance.
6. The product quality is stable and the particle grading is uniform.

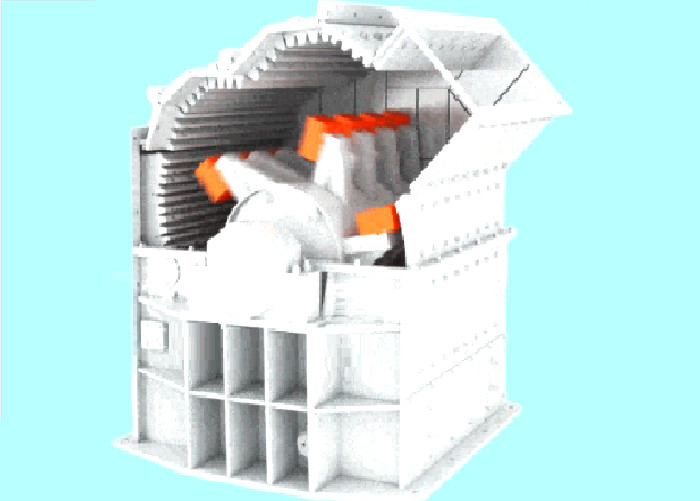

The main machine drives the main shaft through the motor and V-belt, so as to rotate the rotor. The hammer head is extended around by the centrifugal force generated during rotation. After large materials enter the crushing chamber from the feed inlet, they are crushed by the high-speed hammer. The qualified crushed materials are discharged from the cracked castor bar at the lower part, and the unqualified materials are left in the crushing chamber and repeatedly acted by hammer and bearing iron block until they can be discharged qualified. In order to avoid blockage, the water content of the crushed material is generally not more than 20%.
