Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Model Number: | SZF 1030 | Feed Size: | 0-10mm |
|---|---|---|---|
| Production Capacity: | 5-50t/h | Application: | Screening And Classification Of Powdery And Granular Materials |
| Main Features:: | The Overall Rigidity Is Good, Firm And Reliable. | Power(kw): | 0.75x2 |
| Angle(°): | 0-7° | Deck Demension (mm): | 1000x3000 |
| High Light: | SZF 1030 Vibrating Screen Machine,0.75kw Vibrating Screen Machine,SZF 1030 beneficiation machine |
||
Product description
GTS1030 Vibrating Screen Machine Roller screenSand making screening and beneficiation

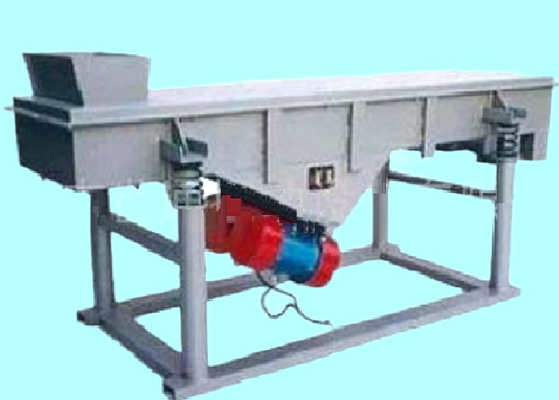

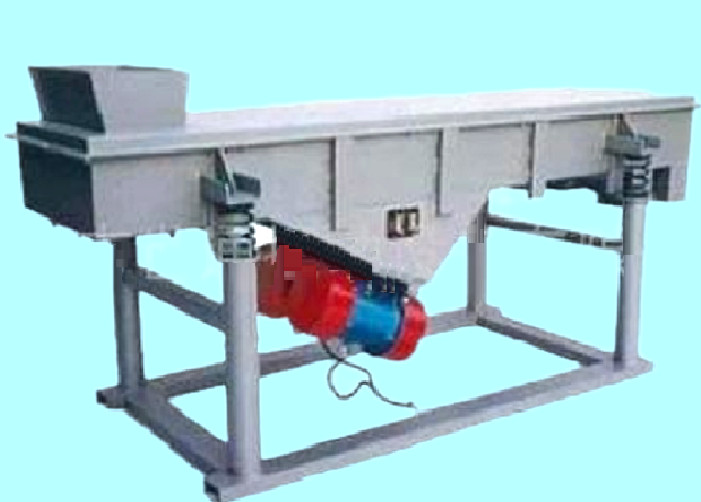

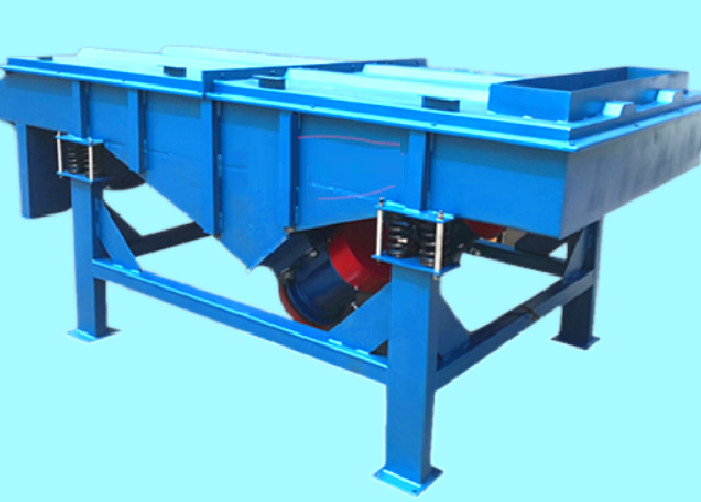

Linear vibrating screen is a multifunctional screening equipment, which can not only be used in various industries. It also has the characteristics of large output and high precision. It is more reasonable to customize it mainly according to the materials you need to screen. At the same time, it will easily achieve your screening purpose. It is composed of vibrating motor, screen box, screen, vibration transmission body and vibration damping device.
| Model | Deck demension (mm) | Maxfeeding Size(mm) | Angle(°) | Amplitude(mm) | Capacity(t/h) | power(kw) | Decks |
| SZF1030 | 1000x3000 | 0.074-10 | 0-7° | 4-8 | 5-7 | 0.75x2 | 1-5 |
| SZF1040 | 1000x4000 | 0.074-10 | 0-7° | 4-8 | 5-10 | 0.75x2 | 1-5 |
| SZF1230 | 1200x3000 | 0.074-10 | 0-7° | 4-8 | 10 | 1.1x2 | 1-5 |
| SZF1530 | 1500x3000 | 0.074-10 | 0-7° | 4-8 | 15 | 1.5x2 | 1-3 |
| SZF1540 | 1500x4000 | 0.074-10 | 0-7° | 4-8 | 20 | 2.2x2 | 1-3 |
| SZF1545 | 1500x4500 | 0.074-10 | 0-7° | 4-8 | 25 | 2.2x2 | 1-3 |
| SZF1845 | 1800x4500 | 0.074-10 | 0-7° | 4-8 | 35 | 3.7x2 | 1-3 |
| SZF2050 | 2000x5000 | 0.074-10 | 0-7° | 4-8 | 50 | 3.7x2 | 1-3 |
1. This type of screening machine is suitable for coarse separation with high production capacity;
2. The material has long stroke on the screen surface and large processing capacity;
3. Parallel transportation of materials while screening;
4. The inclination angle of screen surface can be adjusted to balance the production of screen penetration accuracy.

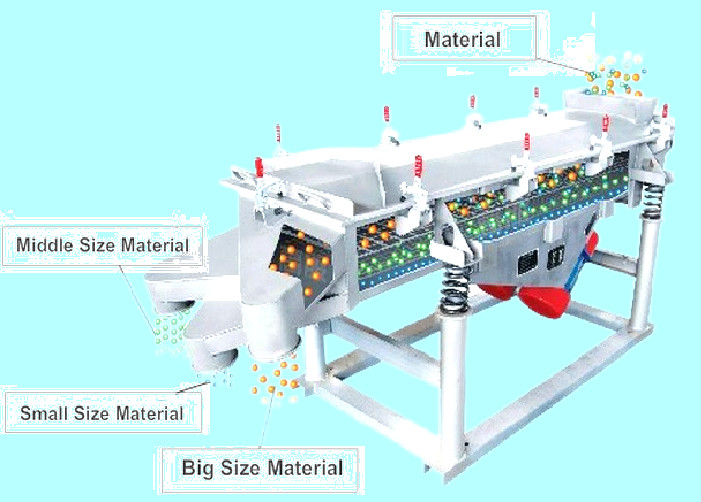

The basic principle is to change the rotary motion of the motor into a horizontal, vertical and inclined three-dimensional motion by means of the weight (uneven weight) installed at the upper and lower ends of the motor shaft, and then convey the motion to the screen surface. If the phase angle of the upper and lower weights is changed, the moving direction of the raw material can be changed.
