Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw

Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw
Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw
Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw
Basic Information
Place of Origin: Shanghai
Brand Name: Shanghai banghuai Heavy Industry Machinery Co., Ltd
Certification: ISO9001
Model Number: PE750x1060 series Jaw crusher
Minimum Order Quantity: 1
Price: Price negotiable
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100
Get Best Price Contact Now
Input Size: 0-630mm Production Capacity: 130-260T/h
Applicable Materials: Ore Of Various Hardness Applications Fields: Mining And Crushing
High Light:

750mm PE Jaw Crusher

,

260T h PE Jaw Crusher

,

260T h lime stone crusher

Rock 750mm PE Jaw Crusher Lime Stone 260T H Sand Plant Equipment

1.   Product description

      PE series jaw crushers are commonly known as jaw crushers. They are often used as primary crushers in various crushing production lines. This jaw crusher simulates the movement of the two jaws of an animal, extruding,twisting and grinding the materials in the crushing cavity though the opening and closing of two jaw plates(moving jaw and fixed jaw).

2.   Technical Parameters





Model Feed inlet size(mm) Max inlet size(mm) Capacity(t/h) Electric power(kw) Overall size LxWxH(mm) Weight(t)
PE150× 250 150× 250 125 1-5 5.5 875× 758× 850 0.81
PE250× 400 250× 400 210 5-20 15 1450× 1315× 1296 2.8
PE400× 600 400× 600 340 25-65 30 1565× 1732× 1586 6.5
PE500× 750 500× 750 425 45-80 55 1892× 2054× 1853 10.1
PE600× 900 600× 900 500 70-150 55-75 2520× 1840× 2303 15.5
PE750× 1060 750× 1060 630 130-260 110 2620× 2302× 3110 28
PE900× 1200 900× 1200 750 220-500 110-132 3789× 2826× 3025 50
PE1000× 1200 1000× 1200 850 250-700 132 3889× 2826× 3025 57
PE1200x1500 1200× 1500 1020 400-1000 160-220 4200× 3750× 3820 100.9
PEX150x750 150x750 125 5-16 15 1200x1500x1200 3.8
PEX250x750 250x750 210 15-30 30 1667x1545x1250 5.6
PEX250x1000 250x1000 210 20-50 30 1530x1992x1380 7
PEX250x1200 250x1200 210 25-60 37 1900x2190x1430 8
PEX300x1300 300x1300 250 30-105 55-75 2720x1950x1600 11
PEW250x1000 250x1000 220 15-50 37 1400x1850x1310 6.8
PEW250x1200 250x1200 220 20-60 37 1400x20500x1310 7.8
PEW400x600 400x600 350 15-70 37 1920x1460x1840 8
PEW760 760x1100 620 150-350 110 2600x2500x2200 27
PEW860 860x1100 720 200-500 132 3300x2320x3120 32





3.   Product advantages

1.     Good stability and high reliability
The movable jaw assembly is made of high-quality steel castings, and the heavy-duty eccentric shaft is also processed by forging blanks, all of which make the jaw crusher extremely stable. Compared with other crushers of the same specification, we use larger and more durable eccentric shaft bearings to make it have a higher load capacity and ensure its reliability.
2.     Simple structure and easy maintenance
After continuous improvement and optimization, while ensuring the performance of the machine, the machine structure is also simplified. The whole machine is easier to operate, more convenient for maintenance, and downtime for maintenance is greatly shortened.

3.     Advanced technology and long service life.
The use of heavy weight manufacturing technology, the use of advanced digital component processing equipment to ensure the precision of machine parts; the selection of advanced production materials greatly enhances its compression resistance and wear resistance, and greatly extends the service life of the machine.
4.      Large capacity and good grain shape
Using advanced crushing principle, the proportion of cubes in the product is obviously increased, and the size of needle-like stones is reduced more uniformly.

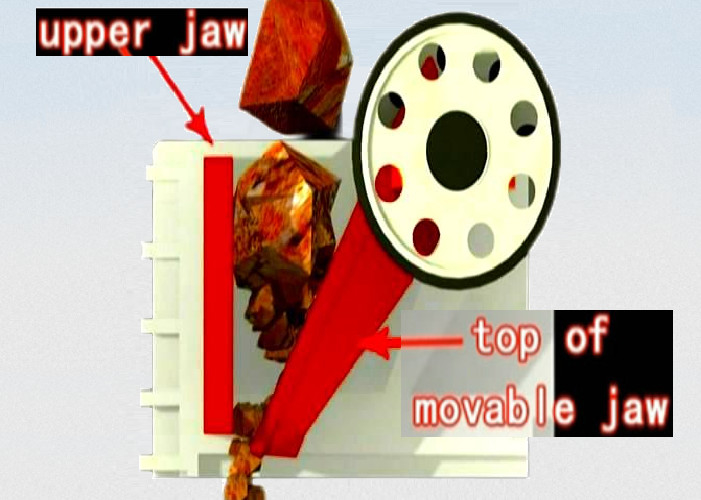

4.    Working principle



     PE jaw crusher is powered by a motor, through the motor pulley, the eccentric shaft is driven by the V-belt and the sheave, so that the movable jaw reciprocates along to the predetermined tracks to crush materials inside the crushing cavity.Materials after being processed and reaching the standard,would be discharged from the lower discharge opening.



5.   Factory manufacturing and scene

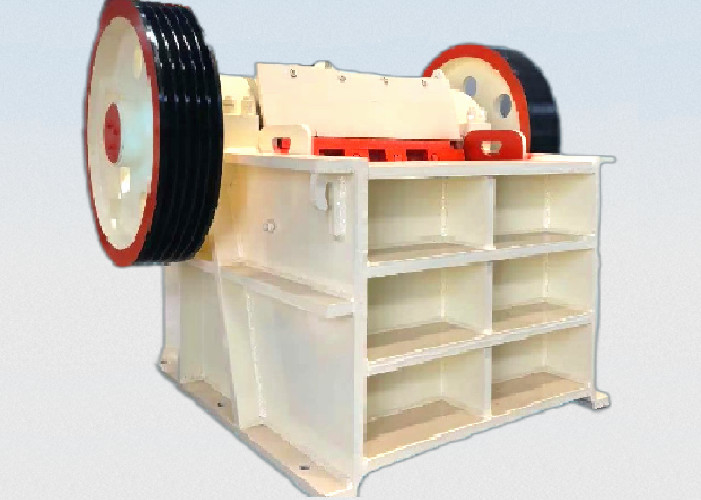

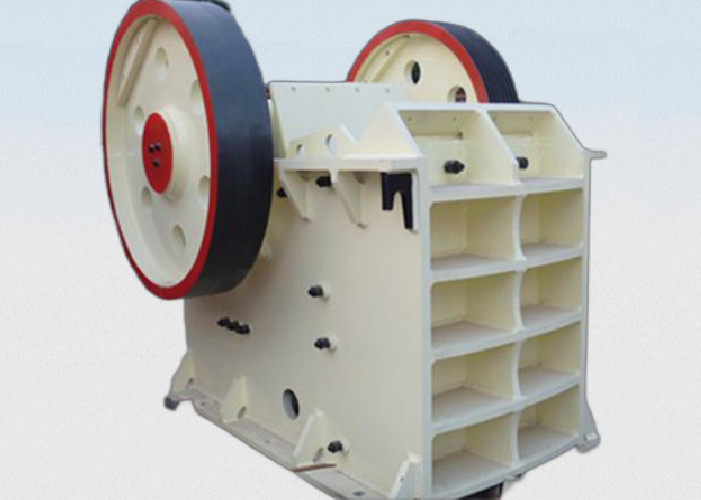

Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw 0



Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw 1



Rock 630mm PE 750x1060Jaw Crusher Lime Stone 260T H Sand Plant Equipment 110kw 2
