Basic Information
Place of Origin: Shanghai
Brand Name: Shanghai banghuai Heavy Industry Machinery Co., Ltd
Certification: ISO9001
Model Number: 1600 1500 Wet mill / Gold mill
Minimum Order Quantity: 1
Price: Price negotiable
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100
Get Best Price Contact Now
Applicable Materials: Gold Iron Molybdenum Lead Zinc Antimony And Other Minerals Are Used Model: 1600
Specifications: 1600×400×200×500± 20mm Capacityt/d: 15
Speed R/min: 21-23 Powerkw: 15
High Light:

1600 gold centrifugal separator

,

15kw gold centrifugal separator

,

15kw gold mill

1600 Gold Centrifugal Separator 15kw Gold Mill Molybdenum Iron



1,   Product description

         Specifications are coded by roller diameter Φ Type 160 Φ 150 Φ Type 140 Φ Model 130 wet mill can be used to select iron, molybdenum, zinc, lead, antimony, tungsten and other ores. Φ 120 Φ 110, 100 Φ Type Φ Model 900 can be used for customers to choose money.

         900-1500 wet mill fundamentally solves the problems of uneven mixing and difficult air discharge of similar mixing equipment. It is the latest and most suitable professional equipment for grinding ore, slag and refractory materials in mines.

2,   Technical parameters

Model Specifications Capacityt/d speed r/min Powerkw
900 900×180×70×230± 20mm 4 11-14 4-4 -100 mesh accounts for 70-80%
1000 1000×200×80×250± 20mm 6 13-15 4-5.5 -100 mesh accounts for 70-80%
1100 A 1100×200×80×250± 20mm 10 17-19 6-7.5 -100 mesh accounts for 70-80%
1100 B 1100×200×80×250± 20mm 10 23-25 4-7.5 -100 mesh accounts for 70-80%
1200 A 1200×200×80×250± 20mm 15 17-19 6-7.5 -100 mesh accounts for 70-80%
1200 B 1200×200×80×250± 20mm 15 23-25 4-7.5 -100 mesh accounts for 70-80%
1300 A 1300×250×150×350± 20mm 18 16-18 6-15 -100 mesh accounts for 70-80%
1300 B 1300×250×150×350± 20mm 18 21-23 4-15 -100 mesh accounts for 70-80%
1350 A 1350×250×150×350± 20mm 25 16-18 6-18.5 -100 mesh accounts for 70-80%
1350 B 1350×250×150×350± 20mm 25 21-23 6-18.5 -100 mesh accounts for 70-80%
1400 A 1400×250×150×350± 20mm 35 16-18 6-18.5 -100 mesh accounts for 70-80%
1400 B 1400×250×150×350± 20mm 35 21-23 6-18.5 -100 mesh accounts for 70-80%
1500 A 1500×350×200×460± 20mm 50 20-22 6-22 -100 mesh accounts for 70-80%
1500 B 1500×350×150×460± 20mm 50 20-22 6-22 -100 mesh accounts for 70-80%
1500 C 1500×300×150×420± 20mm 45 20-22 6-22 -100 mesh accounts for 70-80%
1600 A 1600×400×200×500± 20mm 80 20-22 6-30 -100 mesh accounts for 70-80%



3,   Product advantages

         This machine also fundamentally solves the problems of uneven mixing and difficult ventilation of similar mixing equipment. Is the latest most suitable for refractory molding raw material processing equipment.

         This machine is mainly through the repeated mixed rolling, crushing and rolling of raw materials to achieve the goal of water balance, uniform ratio and low air content, so as to improve the forming rate and forming quality. The products made of wet ball milling materials have the characteristics of high density, good strength, no pores and large ratio.

4,  Working principle

The power of the wet roller is that the motor is driven to the gearbox through the V-belt, and then the gearbox drives the roller, so that the roller runs clockwise. When the raw materials in the basin run with the roller, they rotate with the roller, so as to achieve the purpose of uniform mixing. At the same time, the raw material is rubbed with the roller and the roller plate, so that the raw material is stirred, rolled, crushed and rolled repeatedly to a certain fineness, and then discharged with water to achieve the purpose of mineral processing.

5.   Factory manufacturing and scene

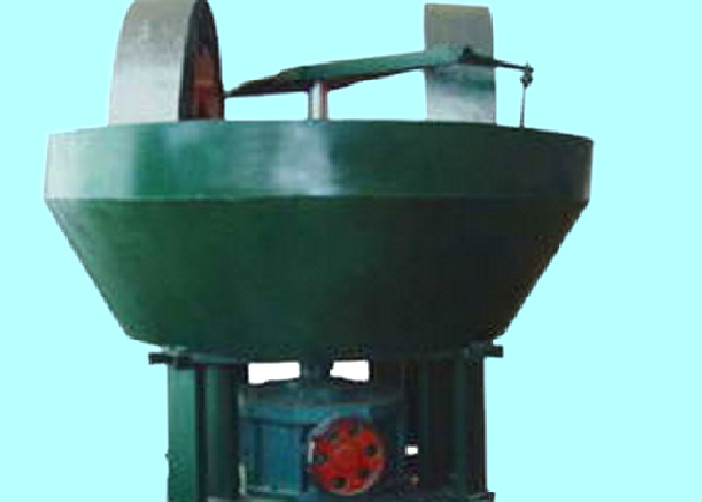

1600 Gold Centrifugal Separator 15kw Gold Mill Molybdenum Iron 0

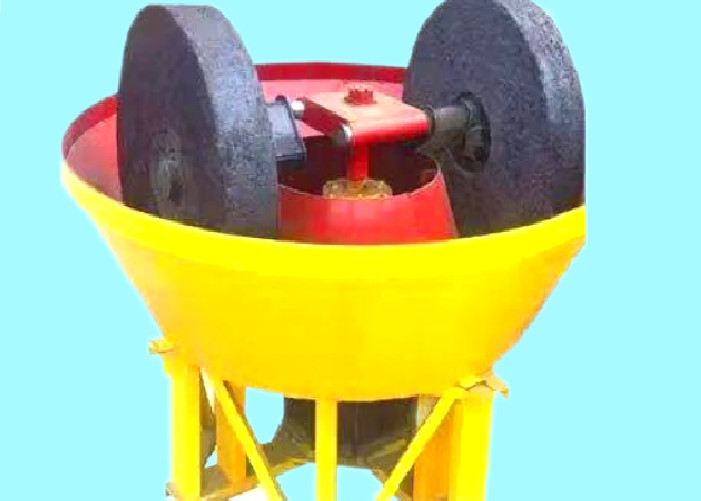

1600 Gold Centrifugal Separator 15kw Gold Mill Molybdenum Iron 1

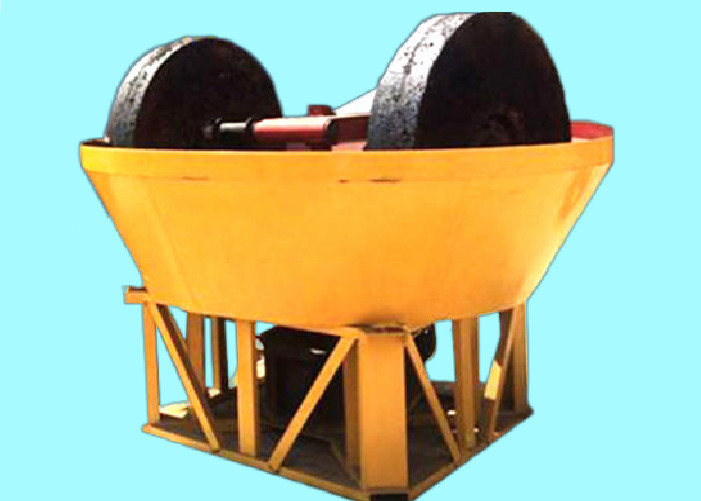

1600 Gold Centrifugal Separator 15kw Gold Mill Molybdenum Iron 2
