Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | LSX920 spiral sand washing machine |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Model: | PC300×400 | Speed(r/min): | 21 |
|---|---|---|---|
| Screw Diameter(mm): | 920 | Max Feeding Size/mm: | ≤200 |
| Consumption(t/h): | 10-80 | Capacity (t/h): | 100 |
| Power/Kw: | 11 | Serives: | Sand Washing Machine |
| Highlight: | Spiral Sand Washing Equipment,Ore Spiral Sand Washer,11kw Screw Sand Washer |
||
Product description

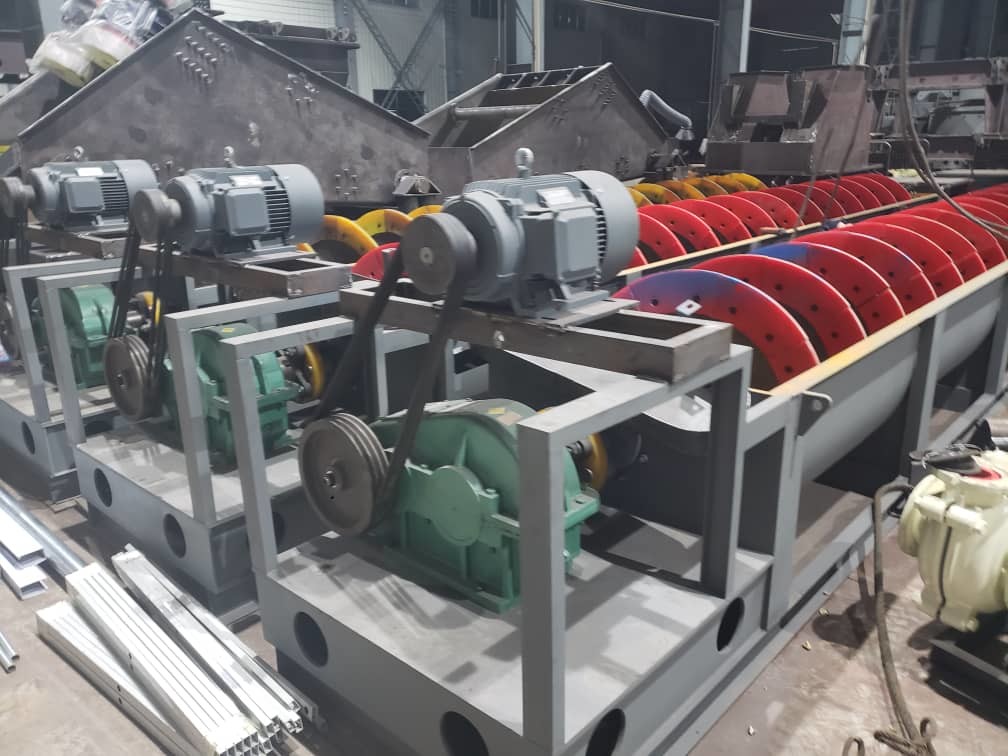

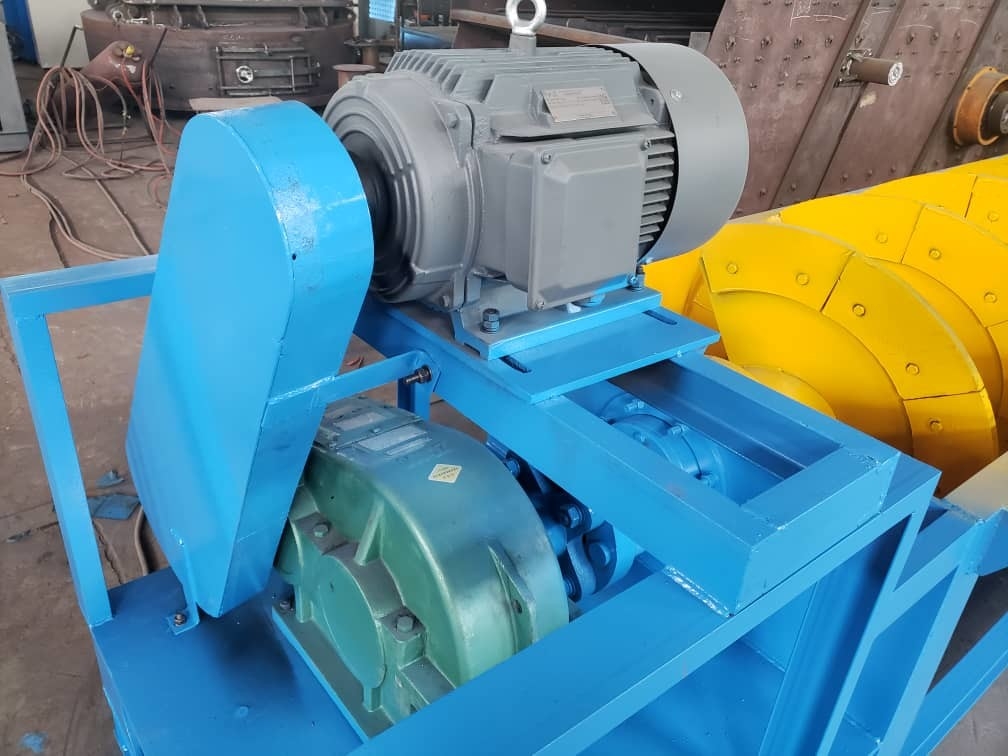

Spiral sand washing machine LSX920 sand washing ore washing 11kw
| Model | Screw diameter(mm) | Length of tube(mm) | Selected size (mm) | Capacity(t/h) | Speed(r/min) | Motor power (kw) | Consumption(t/h) | Weight(t) | Overall dimension L×W×H(mm) |
| LSX920 | 920 | 7585 | ≤10 | 100 | 21 | 11 | 10-80 | 6.2 | 8500×2950×1930 |
| 2LSX920 | 920 | 7585 | ≤10 | 200 | 21 | 2×11 | 20-160 | 11.5 | 8420×3765×2030 |
| LSX1120 | 1120 | 9782 | ≤10 | 175 | 17 | 15 | 20-150 | 10.9 | 10970×3945×4720 |
| 2LSX1120 | 1120 | 9782 | ≤10 | 350 | 17 | 2×15 | 40-300 | 17.94 | 10970×5250×4720 |
1. Simple structure and stable operation.
2. The bearing is separated from water and materials to avoid premature damage caused by pollution and rust of the machine.
3. Suitable for a variety of working environments.
4. Less loss of washed materials and high selection and washing efficiency, which can fully meet the requirements of high-grade materials.
5. The service life is relatively long, and there are almost no wearing parts.
6. Maintenance is rarely required, so the cost can be greatly reduced.
Tag:
LSX920 spiral sand washing machine sand washing ore washing 11kw
