Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | YGM 175 High Pressure MillX Series |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Input Size: | 0-35mm | Production Capacity: | 13-25t/h |
|---|---|---|---|
| Applicable Materials: | Processing And Milling Of More Than 1000 Raw Materials In The Industry | Application Fields: | Various Processed Non-flammable And Explosive Mineral Pads Etc |
| Overall Size LxWxH(mm): | 7850*8000*9700 | Finished Size(mm): | 0.613-0.033 |
| Electricpower(KW): | 200 | Model Number: | YGM 175 |
| Highlight: | MTM 175 Powder Grinding Mill,200kw Powder Grinding Mill,MTM 175 limestone hammer crusher |
||
Product description
MTM 4121 Model trapezoidal mill high pressure mill Raymond Mill Series SCM limestone mill marble mill ore mill stone crusher

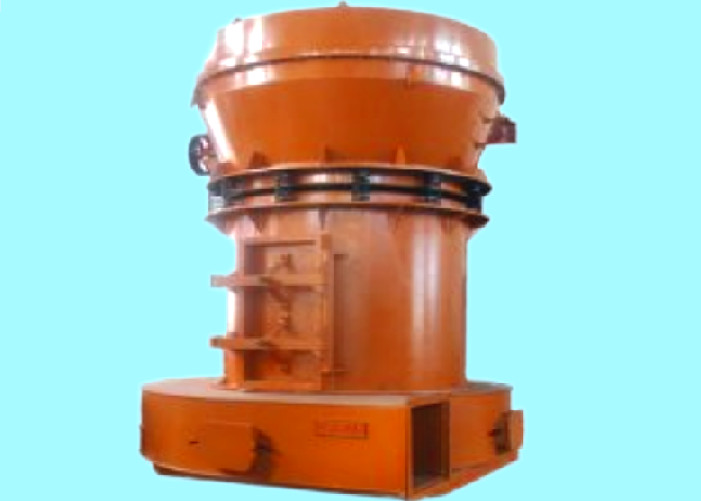

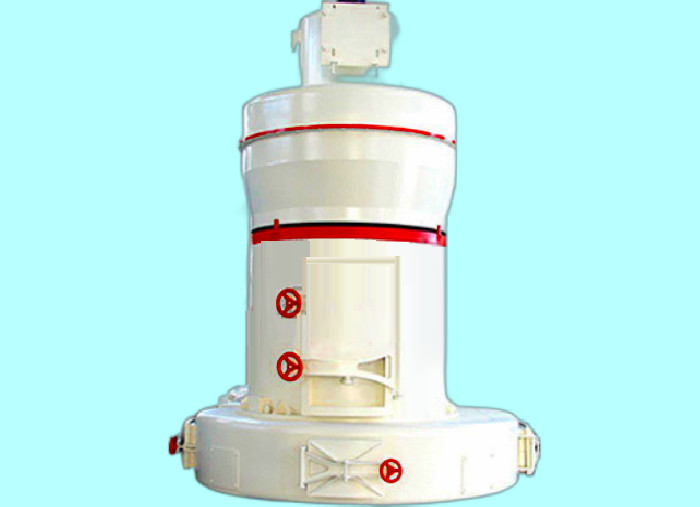

MTM Medium-speed grinding mill is a world leading tool for powder grinding. it absorbs world first-class industrial powder milling technology and organizes the technical experts and related engineers for elaborate design, test and improvement
| Spec. |
Roller number |
RollerSize (MM) |
MaxFeed size(MM) |
Finished size(MM) |
Overall size LxWxH(mm) |
Electric power(KW) |
Electric power(KW) |
WhenTheyield (T) |
| YGM1510 | 3 | 150*100 | 10月15日 | 0.613-0.033 | 3320*2850*4860 | 7.5 | 5.5 | 0.3-1.2 |
| YGM7815 | 3 | 260*150 | 15-20 | 0.613-0.033 | 4300*3500*5100 | 18.5 | 15 | 0.8-2 |
| YGM8314 | 3 | 270*140 | 15-20 | 0.613-0.033 | 5300*4100*5200 | 22 | 22 | 1-3 |
| YGM9517 | 4 | 310*170 | 15-25 | 0.613-0.033 | 7100*5900*7900 | 37 | 37 | 2.1-5.6 |
| YGM4121 | 5 | 410*210 | 15-25 | 0.613-0.033 | 7850*8000*9700 | 75 | 75 | 2.8-10.5 |
| MTM130 | 5 | 410*210 | 15-25 | 0.613-0.033 | 7850*8000*9700 | 75 | 75 | 2.8-10.5 |
| MTM160 | 6 | 440*270 | 20-35 | 0.613-0.033 | 12550*5700*8350 | 132 | 132 | 5-20 |
| MTM175 | 5 | 520*280 | 25-40 | 0.6-0.045 | 12575*9555*9916 | 160 | 200 | 13-25 |
1. Interitance of Classical Design, Innovation of Science & Technology
2. Lower Electricity Consumption, Higher Economic Profits
3. Impeller-type Energy-saving Fan Having Higher Efficiency
4. Lower Energy Consumption - Cambered Air Duct
5. Digitalized Processing, Higher Precision

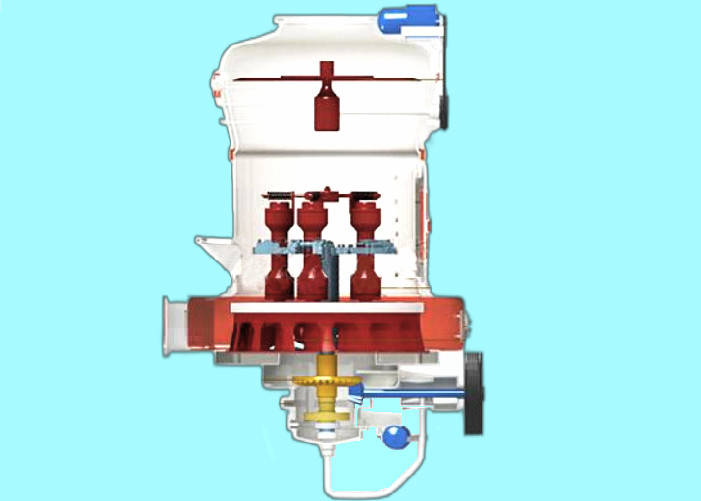

After jaw crushers break large bulky materials to smaller ones, elevators work to send materials to the hopper. Then, by electromagnetic vibrating feeders, broken materials are evenly and quantitatively sent to the grinding chamber of MTM Medium-speed Grinding Mill. After grinding, materials are blown away by airflow to the powder concentrator for classifying.
Under the action of the impeller of powder selector, materials which fail to meet fineness would be sent back to grinding chamber to get another grinding while qualified powders would be collected by cyclone powder collector and discharged from the bottom as finished products. And, after that, the airflow would go into the fan along with the air return duct at the top of cyclone power collector.
This system adopts a closed circuit and runs under positive and negative pressure. Because materials have a certain content of moisture, heat generated during grinding may lead air evaporation or swell in the grinding chamber so that the amount of airflow increases sharply. Besides, if the feed port and joints of pipelines are not sealed well, external air may intrude the grinding mill and lead imbalance of airflow.
