Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | PXJ1818 Model Fine crushe |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Feed Size: | 0-190mm | Production Capacity: | 250-310t/h |
|---|---|---|---|
| Scope Of Work: | Crush All Kinds Of Brittle Materials | Main Purpose: | Fine Crushing Of Various Hardness Minerals |
| Rotor Spec /mm: | 1800x1800 | Adjusting Range(mm): | 5-20 |
| Power(kw): | 315 | Model Number: | PXJ1800x1800 |
| Highlight: | 1800×1800 Coarse Powder Mill,310t h Coarse Powder Mill,1800×1800 quarry crushing equipment |
||
Product description

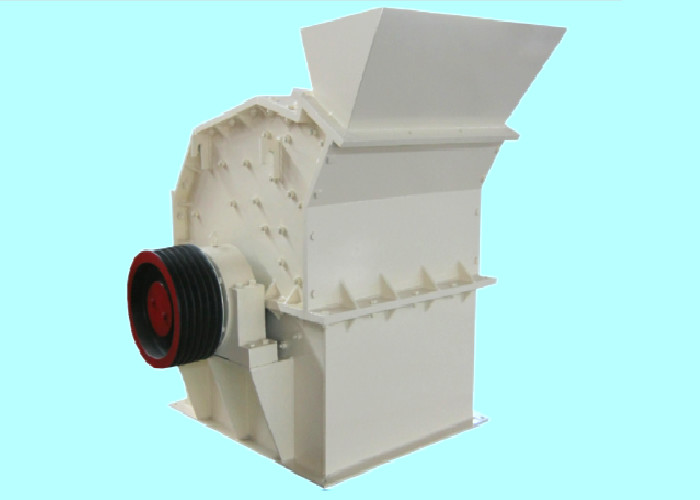

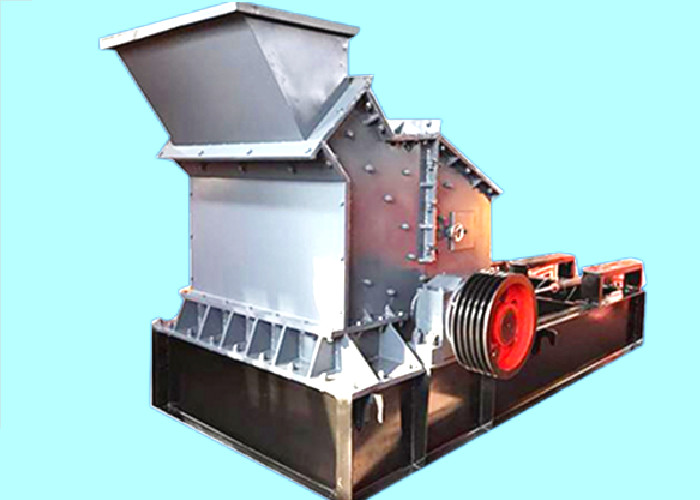

PXJ1800x1800 Model Fine crusher quartz crusher sand crusher quarry crushing equipment Powder crusher
European coarse grinding, also known as European coarse grinding and coarse grinding, is a grinding equipment specially designed for medium crushing, fine crushing and coarse powder processing of stone materials. It is mainly suitable for crushing various soft and hard ores with compressive strength not higher than 320MPa (MPA). It is used in industrial and mining enterprises such as metallurgy, mining, chemical industry, cement, coal gangue, construction, sand making, refractory materials and ceramics.
| Model | Rotor spec /mm | Feed opening/mm | Max Feeding Size/mm | Finished particle size/mm | Adjusting range(mm) | Capacity (t/h) | Power/Kw |
| PXJ800x400 | 800x400 | 400x185 | ≤120 | ＜5 | 5-20 | 20-45 | 37 |
| PXJ800x600 | 800x600 | 500x250 | ≤180 | ＜5 | 5-20 | 30-55 | 45 |
| PXJ800x800 | 800x800 | 550x330 | ≤180 | ＜5 | 5-20 | 35-65 | 55 |
| PXJ1000x1000 | 1000x1000 | 1000x350 | ≤180 | ＜5 | 5-20 | 45-75 | 75 |
| PXJ1200x1200 | 1200x1200 | 1200x450 | ≤180 | ＜5 | 5-20 | 90-110 | 110 |
| PXJ1400x1400 | 1400x1400 | 1400x500 | ≤180 | ＜5 | 5-20 | 100-150 | 160 |
| PXJ1600x1600 | 1600x1600 | 1600x550 | ≤190 | ＜5 | 5-20 | 170-250 | 250 |
| PXJ1800x1800 | 1800x1800 | 1800x800 | ≤190 | ＜5 | 5-20 | 250-310 | 315 |
1. High production capacity and large crushing ratio.
2. Low power consumption and uniform product particle size.
3. The mechanical structure is simple, compact and light.
4. It has the advantages of low investment cost and convenient management.

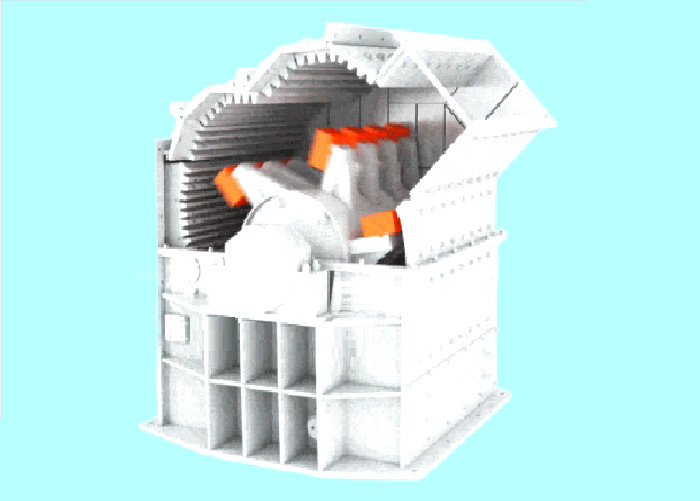

European plate coarse grinding is mainly composed of casing, rotor, grate and other components. The casing is divided into upper and lower parts, which are welded after cutting by steel plate, and the other parts are connected into one by bolts. The casing is inlaid with high manganese steel lining plate, which is easy to replace after wear; An array of hammers with regular distribution are installed on the main shaft to form a rotor with the rotary table and the hammer threading shaft.
