Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | SCM90 |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Input Size: | ≤20 | Production Capacity: | 0.6-6.5T/H |
|---|---|---|---|
| Applicable Materials: | Various Hardness Materials, Etc. | Application Fields: | Hardness ≤ 6 Non-combustible, Explosive And Brittle Materials |
| Output Size (μm/mesh): | 5-47 | Ring Diameter (mm): | 930 |
| Model Number: | SCM90 | Main Shaft Speed (r.p.m): | 200-220 |
| Highlight: | SCM 90 talc grinding mill,HGM talc grinding mill,HGM gypsum grinding mill |
||
Product description

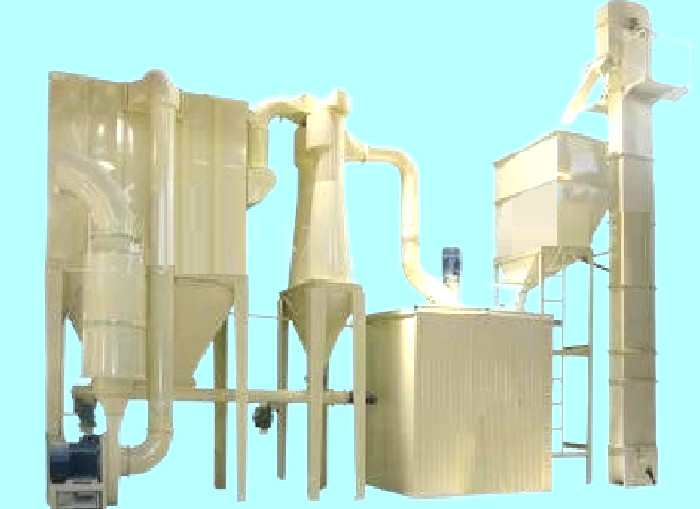

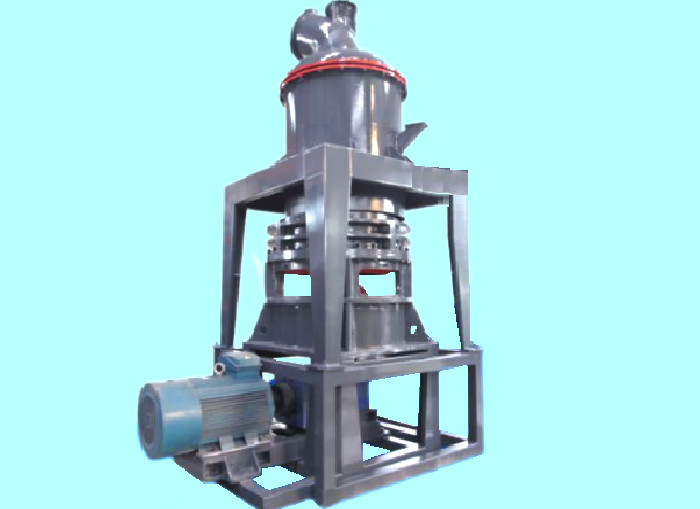

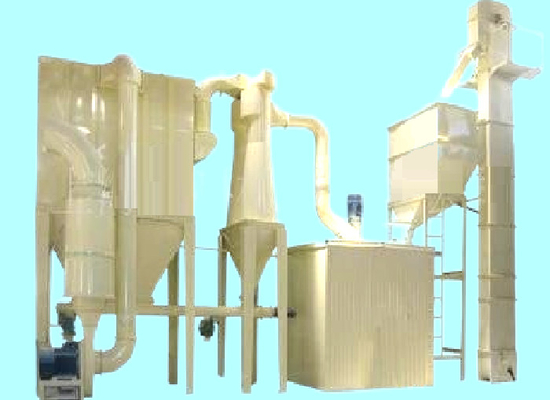

SCM90 Micro Powder Grinding Mill Series HGM Limestone mill Marble mill Ore mill stone crusher
Micro powder grinding mill is a new superfine powder (325-2500 mesh) production equipment developed through accumulating years of experience in grinding mill production, absorbing Swedish advanced machine manufacturing technology, and undergoing many years of tests and improvements. The grinding mill is the result of combination of advanced Chinese and Swedish technologies. Meanwhile, it symbolizes the new development and new science in the grinding world.
| Model | Ring Diameter (mm) | Ring Numbers (pcs) | Roller Numbers (pcs) | Main shaft speed (r.p.m) | feeding Size (mm) | Output Size (μm/mesh) | Capacity (t/h) | Overall Dimension (L*W*H) |
| SCM80 | 800 | 3 | 21 | 230～240 | ≤20 | 5-47 | 0.4-4.5 | 13.9x4x6.2 |
| SCM90 | 930 | 3～4 | 24～32 | 200～220 | ≤20 | 5-47 | 0.6-6.5 | 14.7*4.8*7.2 |
| SCM100 | 1035 | 3 | 27 | 180～200 | ≤20 | 5-47 | 0.7-7 | 18*4.6*8.6 |
| SCM100A | 1035 | 4 | 34 | 180～200 | ≤20 | 5-47 | 1-8.5 | 18*4.6*8.6 |
| SCM125 | 1300 | 4 | 40～44 | 135～155 | ≤20 | 5-47 | 1.5-12 | 14*9*10.25 |
| SCM1680 | 1680 | 4 | 30～40 | 120～130 | ≤20 | 100-9 | 3.8-30 | 26.3*7.5*11.9 |
1. Higher Yielding, Lower Energy Consumption
2. Adjustable Fineness Between 325-2500meshes
3. No Rolling Bearing & Screw in Grinding Chamber
4. Dust Removal by Pulse Collector Makes Operation More Eco-friendly
5. Digitizing Processing, Higher Precision
The grinding disc is driving by motor through reducer. The material falls to grinding disc from the feed opening. The materials are driven to the edge of disc by the centrifugal force and crushed into fine powders by rollers. Then, the hot air from the nozzle take the fine powder to high efficiency classsifier.The qualified powder are taken by the air to the powder collector to be collected, while the unqualified powder are sent back for regrinding.
