Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | PYD1200 Series Spring Cone Crusher |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Cone Diameter (mm): | 1200 | Production Capacity(t/h): | 18-105 |
|---|---|---|---|
| Applicable Materials: | Metallurgical Construction Road Construction Chemical And Phosphate Etc | Applications Fields: | Ore Etc |
| Adjusting Range (mm): | 3-15 | Overall Dimension (mm): | 2790×1878×2844 |
| Power (kw): | 110 | Model Number: | PYD1200 |
| Highlight: | PYD1200 iron ore crusher machine,110kw iron ore crusher machine,110kw jaw stone crusher |
||
Product description

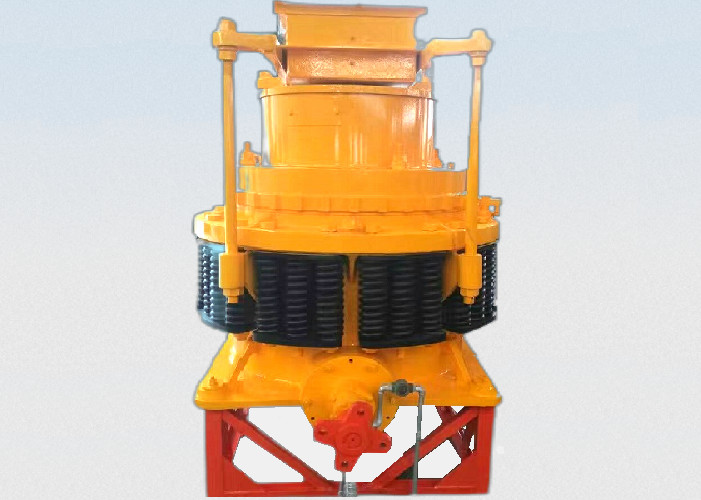

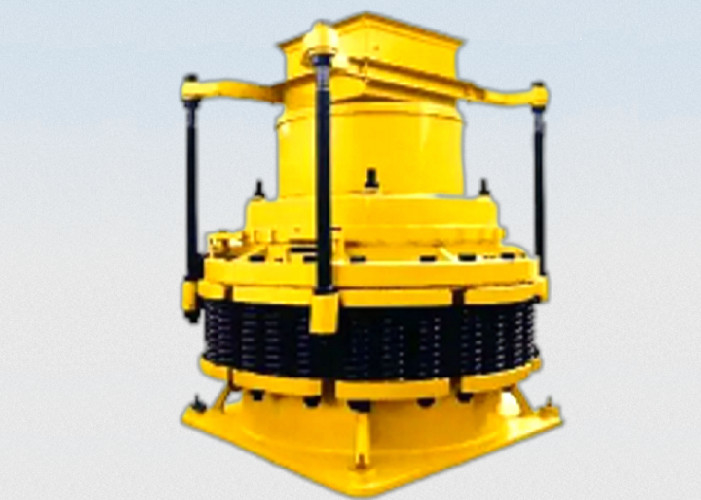

PYB1200 Model Series Spring Cone Crusher river pebble, quartz, granite, basalt, diabase Mine Crusher
PY Spring Cone Crusher is widely used in crushing iron ore, copper ore, cobble, river pebble, quartz, granite, basalt, diabase, etc; In metallurgy, construction, road construction and many other industries have a wide range of applications.
| Model | Cone Diameter (mm) | Maximum feeding size (mm) | Adjusting range (mm) | Capacity (t/h) | Power (kw) | Overall dimension (mm) |
| PYB600 | 600 | 75 | 12-25 | 40 | 30 | 2234×1370×1675 |
| PYZ600 | 600 | 35 | 3-13 | 5-23 | 30 | 2234×1370×1675 |
| PYB900 | 900 | 115 | 15-50 | 50-90 | 55 | 2692×1640×2350 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 55 | 2692×1640×2350 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 55 | 2692×1640×2350 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 110 | 2790×1878×2844 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 110 | 2790×1878×2844 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 110 | 2790×1878×2844 |
| PYB1750 | 1750 | 215 | 25-50 | 280-480 | 160 | 3910×2894×3809 |
| PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 160 | 3910×2894×3809 |
| PYD1750 | 1750 | 85 | 5-13 | 75-230 | 160 | 3910×2894×3809 |
1. It can crush all kinds of ores and rocks with medium hardness and above;
2. It is characterized by reliable structure, high production efficiency, convenient adjustment and economical use;
3. The spring safety system has the function of overload protection, which can make the foreign iron block pass through the crushing chamber without harming the crusher;
4. Glycerin seal is used to isolate dust from lubricating oil and ensure reliable operation;
5. According to customer demand, we can choose standard, medium and short head type for coarse crushing, medium crushing and fine crushing.

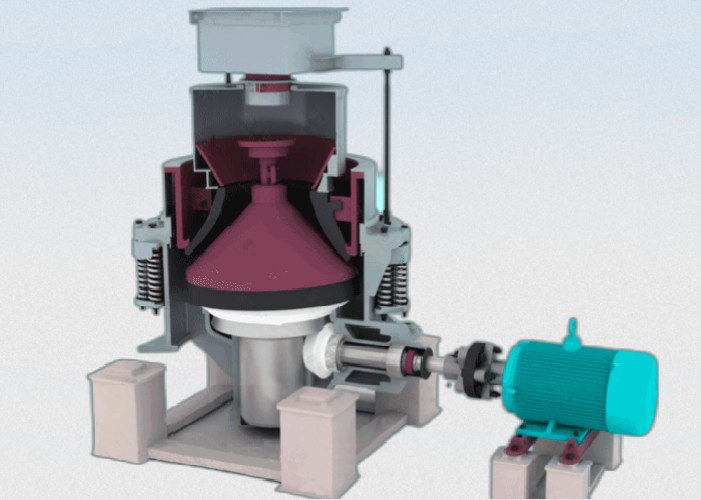

When py series spring cone crusher works, the motor drives the large bevel gear at the bottom of the eccentric sleeve through the hydraulic coupling and small bevel gear to rotate the eccentric sleeve, causing the cone to swing and crush materials.
Tag:
Series Spring Cone Crusher Stone crusher mine crusher
