Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | PF-1210 Impact Crusher |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Input Size: | 0-350mm | Production Capacity: | 70-120t / H |
|---|---|---|---|
| Applicable Materials: | Ore Of Various Hardness | Application Fields: | Chemical Industry Construction Machine-made Sand Processing Etc |
| Spec Of Rotor (mm) : | φ1250×1050 | Overall Dimensions (mm) : | 2696×2338×2890 |
| Power(kw): | 110-132 | Model Number: | PF-1210 |
| High Light: | PF1210 iron ore crusher machine,132kw iron ore crusher machine,PF1210 vsi stone crusher |
||
Product description
PF-1210 Impact Crusher crushing stone machine vsi crusher vsi quarry crusher plant jaw stone crusher
PF Impact crusher is mainly used in metallurgy, mining, cement, chemical industry, refractory materials ceramics and other industrial sectors, in highway construction, water conservancy engineering, construction gravel, made sand processing and so on
| Model | Spec.ification | Feeder Opening(mm) | Feeding Size (mm) | Crushing Capacity (t/h) |
MotorPower (KW) |
Weigh(t) |
MovingConeDiamete (mm) |
| PF-0807 | Φ 850×700 | 400× 730 | 300 | 15-30 | 45 | 8.1 | 2210x1490x2670 |
| PF-1007 | Φ 1000×700 | 400× 730 | 300 | 35-50 | 55 | 9.5 | 2210x1490x2670 |
| PF-1010 | Φ1000×1050 | 400× 1080 | 350 | 50-90 | 75 | 14 | 2400x1558x2660 |
| PF-1210 | 1250×1050 | 400× 1080 | 350 | 80-130 | 110 | 14 | 2400x2250x2620 |
| PF-1214 | Φ1250×1400 | 400× 1430 | 350 | 90-180 | 132 | 19 | 2690x2338x2890 |
| PF-1310 | Φ1300×1050 | 490x1170 | 350 | 80-140 | 110 | 16.2 | 2690x2688x2890 |
| PF-1315 | Φ1320×1500 | 860× 1520 | 350 | 160-250 | 200 | 24 | 2780x2478x2855 |
| PF-1320 | Φ1320×2000 | 860× 2030 | 500 | 250-350 | 300 | 30 | 3096x3273x2667 |
| PF-1415 | Φ1450×1500 | 1145x1520 | 650 | 220-450 | 260 | 27 | 3745x3022x3519 |
| PF-1520 | Φ1520×2000 | 830x2050 | 700 | 300-550 | 315 | 36.5 | 3581x3560x3265 |
| PFW1210II | Φ1150×960 | 1100×1030 | 400 | 90-160 | 90-110 | 17 | 2400×1870×2550 |
| PFW1214II | Φ1150×1400 | 1100×1430 | 500 | 130-200 | 132-160 | 22 | 2400×2310×2550 |
| PFW1315II | Φ1300×1500 | 1200×1530 | 600 | 180-320 | 160-200 | 29 | 2700×2570×2800 |
| PFW1318II | Φ1300×1800 | 1200×1830 | 700 | 240-400 | 200-250 | 34 | 2700×2870×2800 |
| PFW1415II | Φ1400×1500 | 1300×1530 | 700 | 300-480 | 200-250 | 38 | 2900×2700×3000 |
| PFW1010III | Φ1050*960 | 470*880 | 250 | 45-70 | 55-75 | 13 | 2400x1560x2660 |
| PFW1210III | Φ1150×960 | 570×990 | 250 | 70-140 | 90-110 | 15 | 2550×1870×2100 |
| PFW1214III | Φ1150×1400 | 570×1430 | 250 | 90-190 | 132-160 | 19 | 2550×2310×2100 |
| PFW1315III | Φ1300×1500 | 625×1530 | 300 | 150-280 | 160-200 | 25 | 2960×2570×2380 |
| PFW1318III | Φ1300×1800 | 625×1830 | 300 | 220-350 | 200-250 | 30 | 2960×2870×2380 |
| PFW1415III | Φ1400×1500 | 800×1530 | 300 | 280-350 | 200-250 | 33 | 3120×2650×2660 |
1. High efficiency, energy saving, wear resistance and compression resistance
2. Simple structure and convenient maintenance
3. Adjustable discharging particle size, good particle shape

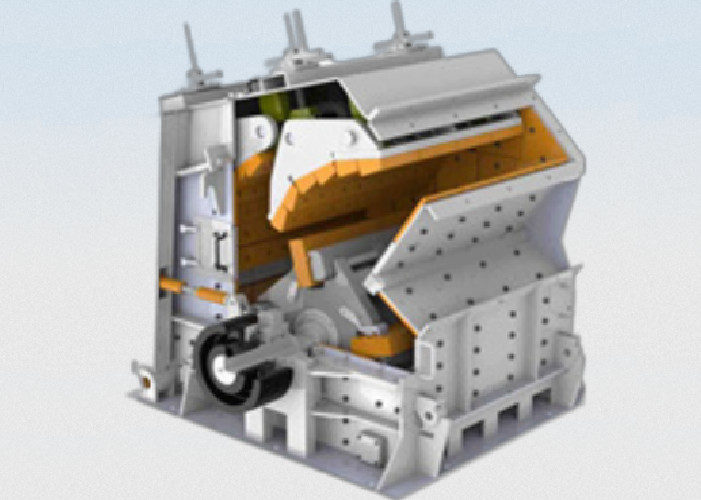

This series of products use impact energy to crush materials. When working, the rotor is driven by the motor to rotate at a high speed. The material entering from the feed inlet collides with the blower on the rotor, and is broken by the high-speed impact of the blower; the broken material is hit back to the lining board and broken again; Finally, it is discharged from the discharge port. Adjusting the gap between the counterattack frame and the rotor frame can achieve the purpose of changing the size and shape of the material.
