Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | B1000 Belt conveyer |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Feed Size: | 0-300mm | Production Capacity: | 150-900 Tons/hour |
|---|---|---|---|
| Applicable Materials: | Ores Of Various Hardness, Etc. | Application Fields: | Screening, Crushing, Sand Making Production Line |
| Bandwidth (mm): | 1000 | Belt Speed (m/s): | 1.0-2.0 |
| Inclination (°): | 0-17° | Model Number: | B1000 |
| Highlight: | B1000 Mobile Crusher Station,900t hour Mobile Crusher Station,B1000 sand making production line |
||
Product description

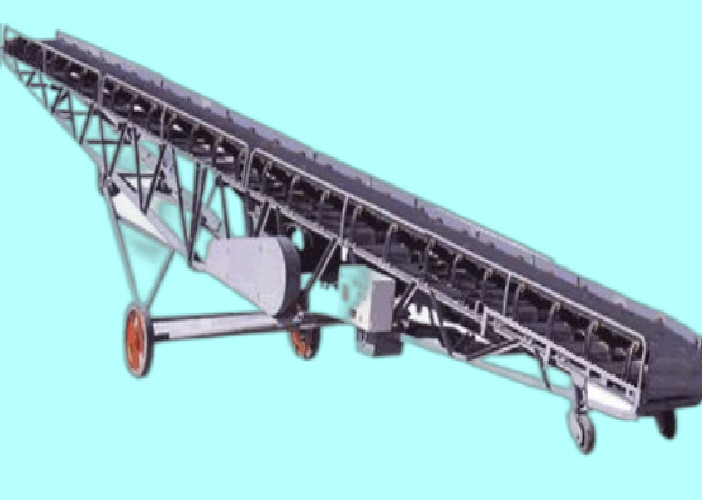

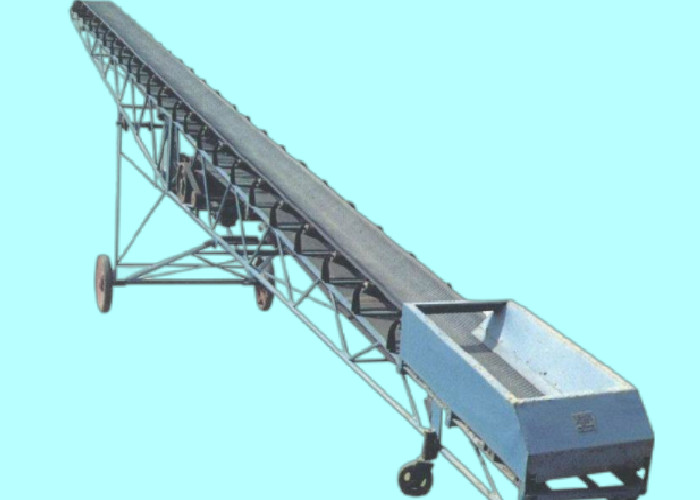

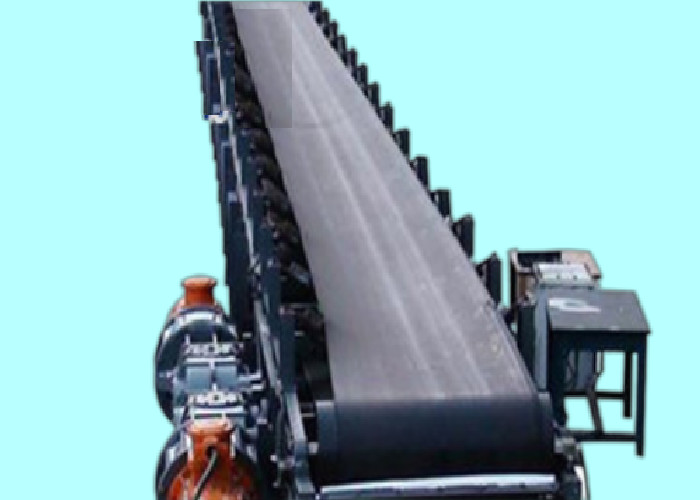

B1000 Model Belt conveyor ore conveyor crusher sand machine Plan of sand quarry
The belt conveyor, commonly known as belt conveyor, summarizes the previous belt conveyor design, production, installation and use of the process of experience, and closely combined with the market situation and user demand and design of the new generation of bulk material conveying equipment, is the ideal upgrade of the traditional belt conveyor replacement products.
Suitabale forgranite, marble, basalt, limestone, quartz stone, river pebbles, copper ore, iron ore, etc Screening and crushing production line and sand making production line in ore plant.
Model |
Width(mm) |
Inclination(°) |
Speed(m/s) |
Power(L=10-30m)(kw) |
Capacity(t/h) |
B500 |
500 |
0-21 |
1.3-1.6 |
4-11 |
80-190 |
B650 |
650 |
0-21 |
1.3-1.6 |
5.5-15 |
130-320 |
B800 |
800 |
0-21 |
1.3-1.6 |
7.5-18.5 |
280-550 |
B1000 |
1000 |
0-21 |
1.3-2 |
11-22 |
440-850 |
B1200 |
1200 |
0-21 |
1.3-2 |
15-30 |
660-1200 |
B1400 |
1400 |
0-21 |
1.2-1.6 |
18.5-37 |
800-1500 |
B2000 |
2000 |
0-21 |
1.2-1.6 |
22-55 |
950-1800 |
1. Simple structure, flexible layout
2 .Large throughput, stable operation, low energy consumption
3. Original supply, worry-free after-sales
Belt conveyor belt conveyor belt as a traction and bearing components, through the movement of the conveyor belt carrying materials, materials for the transport of continuous transport equipment.
The conveyor belt is wound around the driving drum and the tension drum to form an infinite ring belt. The upper and lower conveyor belt is supported by supporting rollers to limit the deflection of the conveyor belt. The tension device provides the required tension for the normal operation of the conveyor belt. When working, the driving device drives the driving drum, and drives the conveyor belt to run through the friction between the driving drum and the conveyor belt. The materials are mounted on the conveyor belt and move together with the conveyor belt.
