Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory

Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory
Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory
Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory
Basic Information
Place of Origin: Shanghai
Brand Name: Shanghai banghuai Heavy Industry Machinery Co., Ltd
Certification: ISO9001
Model Number: GP300S3Single cylinder hydraulic cone crusher
Minimum Order Quantity: 1
Price: Price negotiable
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100
Get Best Price Contact Now
Feed Size: 0-130mm Production Capacity: 100-260t / H
Application Field: Construction, Metal Ore Crushing, Etc. Applicable Materials: Black, Non-ferrous Metal Mines, High-hardness Rocks, Etc.
Model Number: GP300S3 Adjustment Range Of Discharge Port(mm): 16-30
Power(kw): 160-250 Cavity Type: S3
Highlight:

560mm Hydraulic Cone Crusher

,

500t h Hydraulic Cone Crusher

,

560mm cone stone crusher

 560mm Hydraulic Cone Crusher   ore and high hardness rock crushing





1,    Product description



      The single cylinder hydraulic cone crusher is widely used in metal and non-metal mines, building materials, transportation, metallurgy, water conservancy and other industries, and it is suitable for medium and fine crushing of various ores, such as iron ore, non-ferrous metal ore, granite, limestone, quartzite, sandstone, river pebble, etc.



2,     Technical Parameters
Spec.ification

Cavity Size

(Coarse/Fine)

Discharging

OpeningSize(mm)

MaxFeeding

Size(mm)

 Capacity(t/h) Power(kw)

MovingCone

Diameter(mm)

 Weigh(t)
GP100S S1 20～45 130 80～190 75～90 1550*1575*1965 7.35
S2 16～30 90 60～125
S3 10～25 50 40～100
S4 4～16 38 25～55
GP200S S1 20～60 180 130～280 110～160 2100*1800*3000 10.9
S2 16～45 130 100～230
S3 10～30 70 90～210
S4 6～22 42 45～142
GP300S S1 30～60 260 150～400 160～250 2380*2735*3265 16.2
S2 20～40 180 110～355
S3 16～30 130 100～260
S4 8～25 70 72～252
GP500S S1 40～70 300 210～700 250～315 3780*2341*4531 33.3
S2 30～60 210 160～580
S3 20～50 160 140～510
S4 13～38 85 124～423



3,   Product advantages

1,The grain type is regular and the yield is high.

2,Strong crushing capacity.

3,Continuous and stable operation, and can prevent iron from mixing into the automatic overload protection.

4,High efficiency rotary feeding device makes liner wear evenly.

5,Automatic overload protection against iron mixing.

4,   Working principle

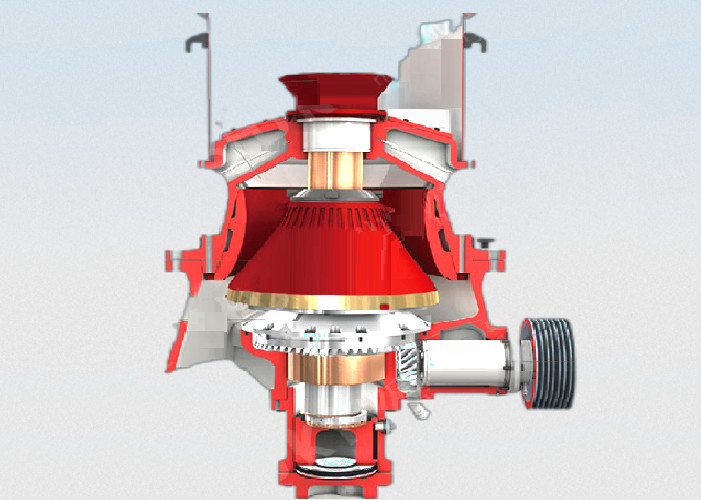

Composition: It is composed of upper frame, middle frame, lower frame, moving cone, eccentric sleeve, transmission device and hydraulic cylinder.

Rotation: The motor drives the horizontal shaft to rotate, the horizontal shaft drives the eccentric sleeve to rotate through the spiral bevel gear meshing, and the eccentric sleeve drives the moving cone to rotate and swing to achieve continuous crushing.

Granularity realization: The single-cylinder hydraulic cone crusher drives the main shaft to drive the movable cone to move up and down by adjusting the hydraulic cylinder at the bottom of the movable cone, and adjusts the distance between the movable cone and the fixed cone liner to control the product.

Overload protection function: When a foreign object (such as iron block) that is not easily broken enters the crushing chamber, the accumulator is triggered, and the hydraulic cylinder automatically causes the moving cone to fall, thereby releasing the iron block, continuing to crush, and protecting the crusher.







5, Factory manufacturing and scene

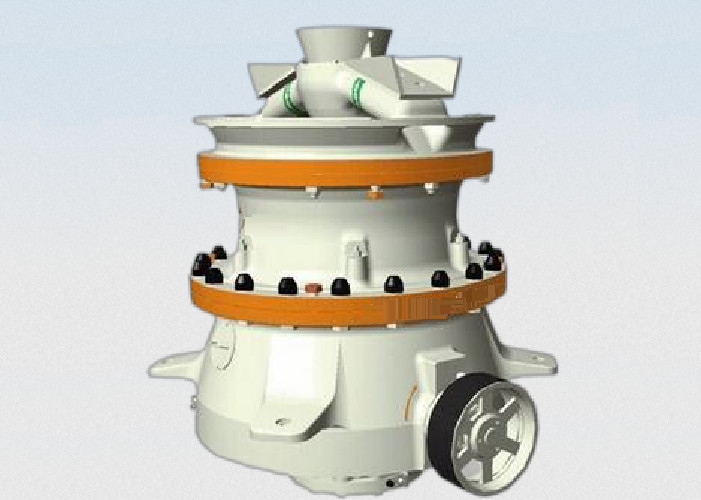

Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory 0

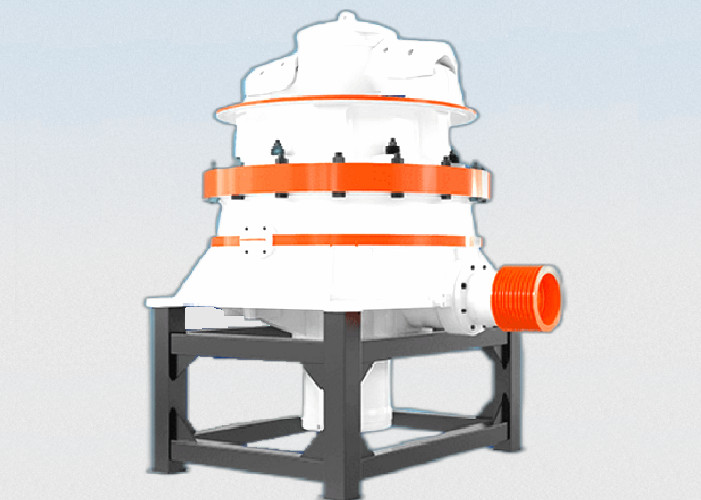

Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory 1



Gp300s3 horizontal bar hydraulic series cone crusher, pebble and granite crusher, stone crushing expert factory 2
