Shanghai Banghuai Heavy Industry Machinery Co., Ltd.
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Shanghai banghuai Heavy Industry Machinery Co., Ltd |
| Certification: | ISO9001 |
| Model Number: | PE400x600 series Jaw crusher |
| Minimum Order Quantity: | 1 |
| Price: | Price negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Input Size: | 350mm | Production Capacity: | 25-65T/h |
|---|---|---|---|
| Applicable Materials: | Crushing Various Ores Of Different Hardness, Etc. | Applications Fields: | Various Industrial And Mining Fine Crushing |
| Power (kw): | 30 | Feed Opening (mm): | 400x600 |
| Range Of Discharge Opening (mm): | 40-100 | Model Number: | PE400x600 |
| Highlight: | PE46 jaw stone crusher,300mm jaw stone crusher,PE46 iron ore crusher machine |
||
Product description
PE Jaw crusher cone crusher crusher mine crusher granite cobble beneficiation and sand making

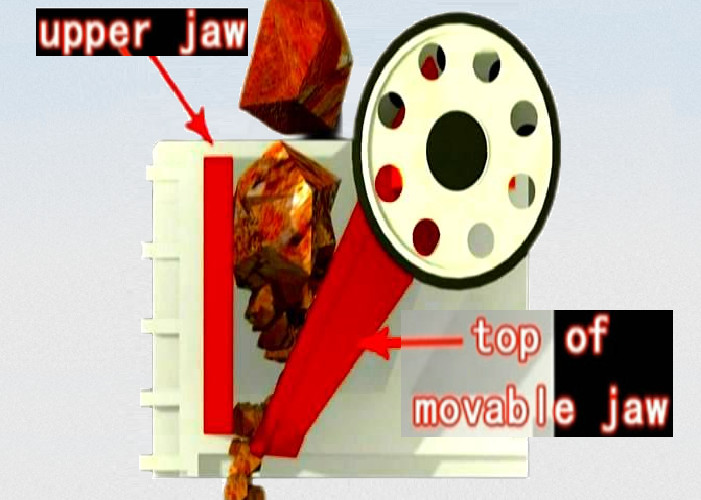

PE series jaw crushers are commonly known as jaw crushers. They are often used as primary crushers in various crushing production lines. This jaw crusher simulates the movement of the two jaws of an animal, extruding,twisting and grinding the materials in the crushing cavity though the opening and closing of two jaw plates(moving jaw and fixed jaw).
Model |
Feed opening (mm) |
Maximum feeding size (mm) |
Range of discharge opening (mm) |
Capacity (t/h) |
Power (kw) |
Overall dimension (mm) |
PE400×600 |
400×600 |
350 |
40-100 |
16-65 |
30/37 |
1730×1730×1630 |
PE500×750 |
500×750 |
425 |
50-100 |
45-100 |
55 |
1890×1916×1870 |
PE600×900 |
600×900 |
500 |
65-160 |
70-120 |
75 |
2520×1840×2303 |
PE750×1060 |
750×1060 |
630 |
80-140 |
130-260 |
110 |
2620×2302×3110 |
PE900×1200 |
900×1200 |
750 |
95-165 |
220-380 |
132 |
3789×2826×3025 |
PE1000×1200 |
1000×1200 |
850 |
195-265 |
230-380 |
160 |
3889×2826×3025 |
PE1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
250 |
4930×3150×3700 |
PEX250×1000 |
250×1000 |
210 |
25-60 |
16-50 |
30 |
1560×1950×1390 |
PEX250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
37 |
2140×1660×1500 |
PEX300×1300 |
300×1300 |
250 |
20-90 |
16-105 |
55 |
2720×1950×1600 |
When the CS series high-efficiency cone crusher works, the motor drives the eccentric sleeve to rotate through the V-belt, large pulley, drive shaft, small bevel gear, and large bevel gear. The axis of the crushing cone rotates under the force of the eccentric shaft sleeve. , So that the surface of the crushing wall is close to and away from the surface of the rolling mortar wall from time to time, so that the material is continuously impacted, squeezed and bent in the annular crushing cavity composed of the fixed cone and the movable cone. After many times of extrusion, impact and bending, the material is crushed to the required size and discharged through the lower part.
